The Architect® Hybrid Multi-Prox access control reader facilitates your 125 kHz Prox migrations to secure and sustainable technologies.

The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

logo architect 740px

The perfect blend of high security and scalability

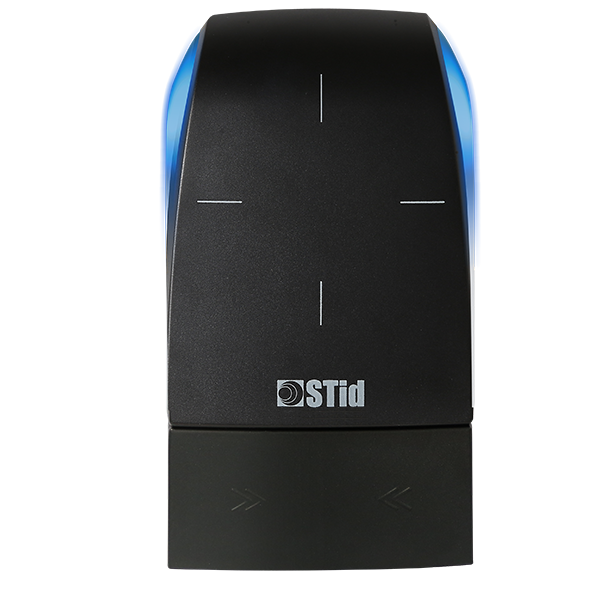

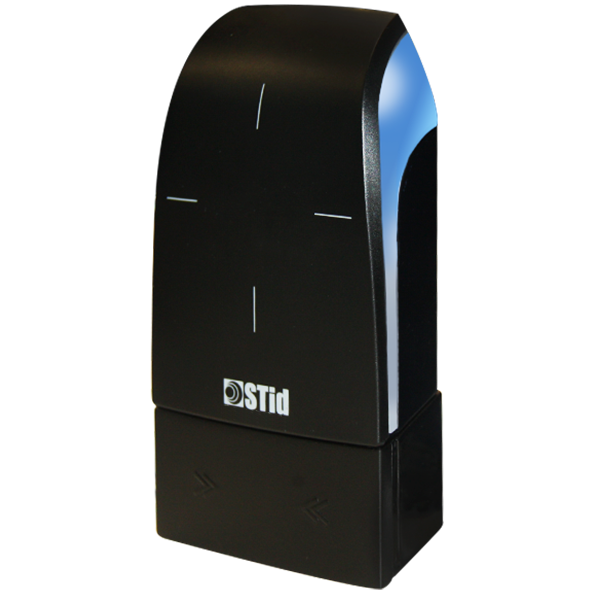

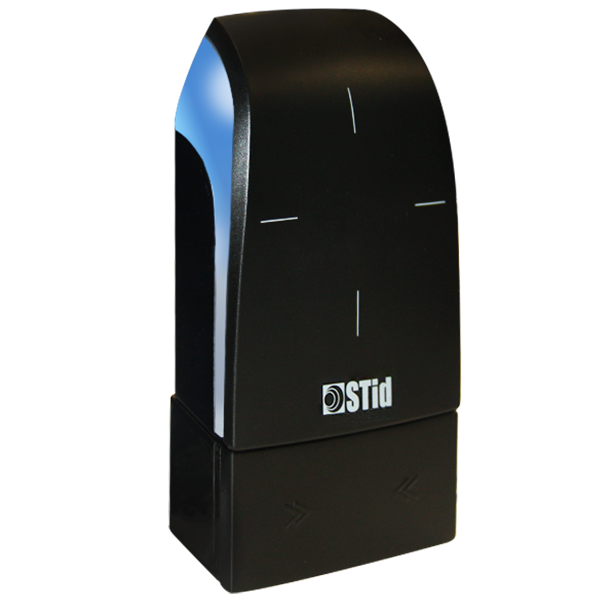

  • sliderARCi 1
  • Visuel lecteur Bluetooth ARCS-I - face
  • Visuel lecteur Bluetooth ARCS-I - profil

Multi-technology to simplify your migrations

The Architect® Hybrid Multi-Prox reader makes it easy to manage technology extensions, upgrades, and migrations. During a migration or a complex multi-site configuration, it can read a heterogeneous mix of cards. It combines two identification frequencies: 125 kHz and 13.56 MHz.

 IM multi techno US

Migrate with peace of mind to secure technologies

Anssi flat blanc

The Architect® Hybrid Multi-Prox reader is the perfect choice for a smooth transition to secure authentication technology.

It uses the latest MIFARE® DESFire® EV2 & EV3 contactless chips technologies with new data security mechanisms:

  • Secure Messaging EV2: secure transaction method based on AES-128 with protection against interleaving and replay attacks.
  • Proximity Check: protection against relay attacks.

It allows the use of public security algorithms (3DES, AES, RSA, SHA...) recognized by specialized and independent organizations in information security (ANSSI).

Logo of SECARD for the ARC-I by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARC-I by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp US

Architect® Hybrid Multi-Prox readers are compatible with the SIA Open Supervised Device Protocol communication protocol - OSDP™.

  • Bi-directional communication between the reader and the management system
  • Signature, encryption
  • Selection of the communication mode (V1 - plain mode, V2 Secure Channel Protocol - SCP secured)

Create your scalable configuration

STid offers the possibility to upgrade the functionalities and security levels of your readers.
The modularity allows to remove the 125 kHz module at the end of your technological migration for more security and/or to implement new functions: keyboard or touch screen.



STid Schema ARC evolutivite BT US

Miniature vidéo modularité du lecteur ARCS-I
Learn more about modularity
of the Architect® range

Standing the test of time

Designed to push the envelope, the Architect® Hybrid Multi-Prox reader is IP65 rated for ruggedness in harsh environments and IK10 rated for vandal resistance..

Télécharger le rapport de résistanceVisuel miniature crashtest lecteur ARC-I

Résistance lecteur ARC I

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

Data sheet

*Our readers only read the / UID PICO1444-3B serial number of the iCLASS™ chip. They do not read the cryptographic protections iCLASS™ nor the / UID PICO 15693 serial number of HID Global.

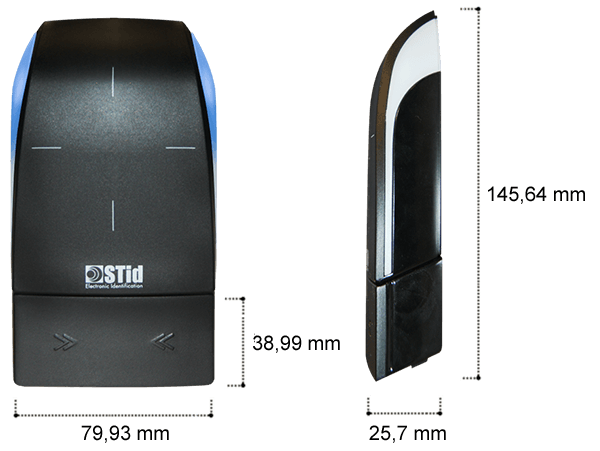

Schéma technique lecteur bluetooth ARCS-I

Certifications Produits

Part numbers

Picto flèche verte Read only

Wiegand interface - Pre-configured mode Easyline: ARC-RX1-IM/PC2-3x/1
Wiegand interface: ARC-RX1-IM/BF5-3x/1



Picto flèche rouge Controlled by protocol

OSDP™ v1 & v2 protocol - RS485: ARC-WX3-IM/BF5-7OS/1
