The Architect® Hybrid Multi-Prox reader facilitates your migrations to secure technologies. It combines two identification technologies 125 kHz and 13.56 MHz with a capacitive vandal-proof keypad.

The most awarded access control reader around the world  logo 16 awards 321x90 website

logo architect 740px

The perfect blend of high security and scalability

  • Picture from the left profile of a black ARCS-J/BT by STid Industry
  • Picture from the front side of a black ARCS-J/BT by STid Industry
  • Picture from the right profile of a black ARCS-J/BT by STid Industry

Multi-technology to simplify your migrations

Offering support for the widest range of contactless identification technologies, the reader is the ideal choice for making a gradual transition to high security. It simplifies management of upgrades, technological migrations and complex multi-site configurations.

 JM NO BT multi techno US

Migrate with peace of mind to secure technologies

Anssi flat blanc

The Architect® Hybrid Multi-Prox reader is the perfect choice for a smooth transition to secure authentication technology.

The reader uses the latest MIFARE® DESFire® EV2 contactless chip technologies with new data security mechanisms:

  • Secure Messaging EV2: secure transaction method based on AES-128 with protection against interleaving and replay attacks.
  • Proximity Check: improved protection against relay attacks.

The reader supports the use of public security algorithms (3DES, AES, RSA, SHA…) recognized by specialized and independent organizations in information security (ANSSI French cybersecurity agency and FIPS).

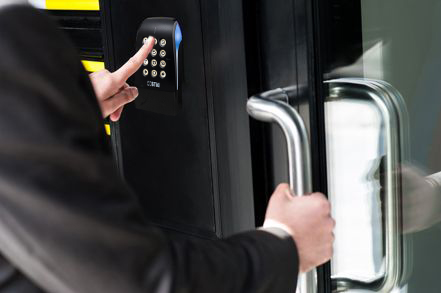

Vandal-proof capacitive keypad

Equipped with a backlit keypad, the reader allows multi-factor identification of users by combining the reading of an RFID  card with the input of a personal keypad code.

Thanks to its different operating modes, the keypad can be used for identification or to activate additional functions (alarm...).

The same reader can also operate in multiple mode e.g. it authorizes card reading for personnel or just code entry for visitors or temporary workers.

Arc j situation

Logo of SECARD for the ARCS-I/BT by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARCS-I/BT by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp US

Architect® Hybrid Multi-Prox readers are compatible with the SIA Open Supervised Device Protocol communication protocol - OSDP™.

  • Bi-directional communication between the reader and the management system
  • Signature, encryption
  • Selection of the communication mode (V1 - plain communication, V2 Secure Channel Protocol - SCP secure)

Standing the test of time

Designed to push the boundaries, the Architect® Hybrid keypad reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high impact resistance (IK08).

Download the resistance reportVideo of the ARCS-J/BT's crash test

Picture showing the resistance of the ARCS-J/BT by STid Industry

Create your own scalable configuration

The Architect® series is intuitive and dynamic, made up of 6 interchangeable modules, easy to connect to a smart common RFID core.

The easy and cost saving modularity concept allows you to keep control of the access security management.

STid Schema ARC evolutivite BT US

Datasheet

  • : 145.6 x 80 x 25.7 mm / 5.7’’ x 3.15‘’ x 0.98’’ (general tolerance following ISO NFT 58-000 standard)
  • Frequency
    Frequency: 125 kHz + 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: EM42xx / EM4x50, HID Proximity®, INDALA® (Wiegand 26 & 27 bits), IOPROX®, AWID® / MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass® (CSN only), iCLASS™ (CSN only*), STid Mobile ID® (NFC virtual cards) & Apple Wallet (NFC Access virtual credentials)
  • Functions
    Functions: CSN, pre-configured (Easyline - PC2) and secure read-only / Controlled by protocol (read/write)
  • Interfaces
    Interfaces: Wiegand output / RS485 output with OSDP™ v1 (plain communication) and v2 (SCP secure communication) protocols
  • Reading distances
    Reading distances: Up to 6 cm / 2.36’’ with a 125 kHz card - Up to 6 cm / 2.36’’ with a MIFARE DESFire® EV2 card
  • Power supply
    Power supply: 7 VDC to 28 VDC / Consumption max 200 mA / 12 VDC
  • Material
    Material: ABS-PC UL-V0 (black)
  • Color
    Color: black
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 22°F to + 158°F
  • Protection
    Protection: IK08 certified reinforced vandal-proof structure / Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (CEI NF EN 61086 homologation) / Humidity: 0 - 95%

*Our readers only read the iCLASS™ chip serial number / UID PICO1444-3B. They do not read iCLASS™ cryptographic protection or the HID Global serial number / UID PICO1444-3B.



Picture of the ARCS-J/BT with its dimensions

Certifications Produits

Part numbers

Picto R Read only

Wiegand protocol: ARC-RX1-JM/BF5-3x/1
Easyline pre-configured - Wiegand protocol: ARC-RX1-JM/PC2-3x/1

picto RW Controlled by protocol

OSDP™ - RS485: ARC-WX3-JM/BF5-7OS/1
