The Architect® Hybrid reader facilitates your migrations to secure technologies. It combines identification technologies 125 kHz and 13.56 MHz with a customizable color touchscreen.

The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

logo architect 740px

The perfect blend of high security and scalability

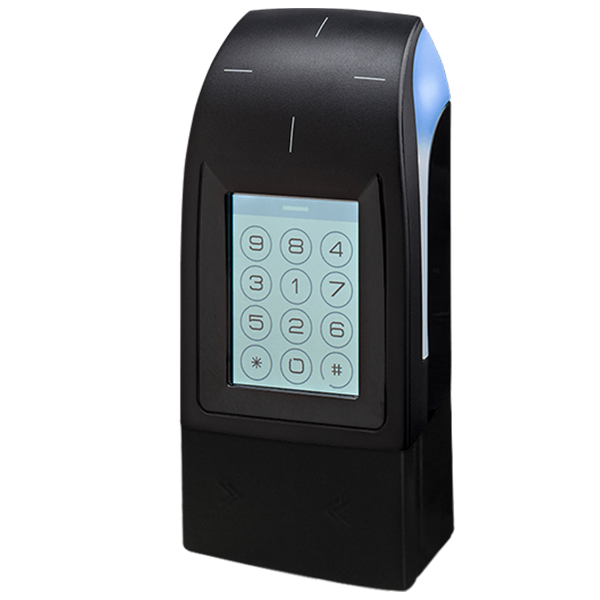

  • ARC k gauche

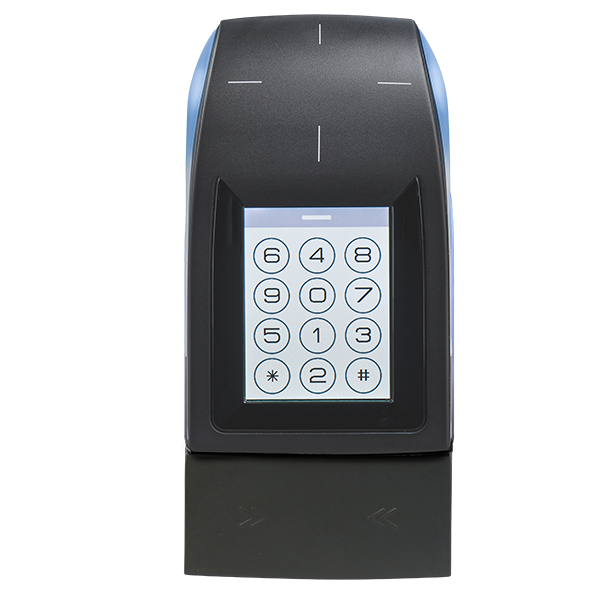

  • ARC k face

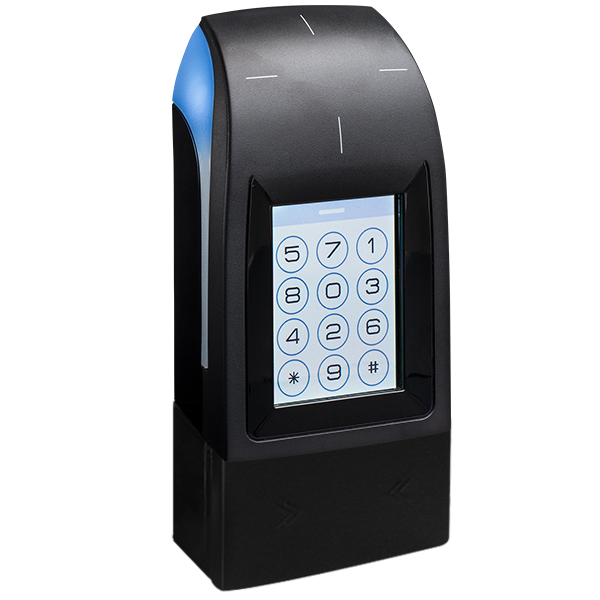

  • ARC k droite

Multi-technology to simplify your migrations

Offering support for the widest range of contactless identification technologies, the reader is the ideal choice for making a gradual transition to high security.
It simplifies management of upgrades, technological migrations and complex multi-site configurations.

 K multi techno US

Multi-function touchscreen reader

Both a reader and a tactile keypad, it allows user identification by combining the reading of a RFID card with the input of a personal keypad code.
The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel and the entry of codes for visitors or temporary workers.

K multi facteur V2 US

Migrate with peace of mind to secure technologies

Anssi flat blanc

The Architect® Hybrid reader is the perfect choice for a smooth transition to secure authentication technology.

The reader uses the latest MIFARE® DESFire® EV2 contactless chip technologies with new data security mechanisms:

  • Secure Messaging EV2: secure transaction method based on AES-128 with protection against interleaving and replay attacks.
  • Proximity Check: improved protection against relay attacks.

The reader supports the use of public security algorithms (3DES, AES, RSA, SHA…) recognized by specialized and independent organizations in information security (ANSSI French cybersecurity agency and FIPS).

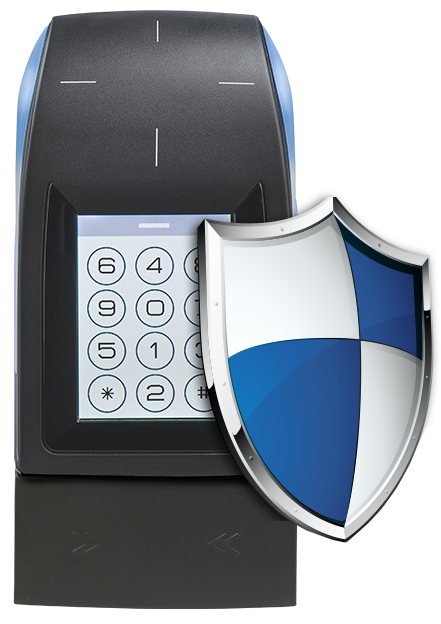

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Bouclier ARC k

Logo of SECARD for the ARCS-I/BT by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARCS-I/BT by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp US

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 et V2

logo sscp US

Readers are compatible with the latest generation of open protocol SSCP® (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Create your own scalable configuration

The Architect® series is intuitive and dynamic, made up of 6 interchangeable modules, easy to connect to a smart common RFID core & Bluetooth®.

The easy and cost saving modularity concept allows you to keep control of the access security management.

STid Schema ARC evolutivite BT US

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines.
STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

Datasheet

  • Frequency
    Frequency: 125 kHz + 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: EM42xx / EM4x50, Crosspoint®, Nedap®, Format Wiegand 26, 34, 35 and 37 bits / MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass® (CSN only), iCLASS™ (CSN only*), STid Mobile ID® (NFC virtual cards), Apple Wallet (NFC Access virtual credentials) & Orange Pack ID
  • Functions
    Functions: CSN read-only, secure (file, sector) and secure protocol (Secure Plus) / Controlled by protocol (read/write)
  • Interfaces
    Interfaces: TTL Data Clock (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) and RS232 output with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) / Compatible with EasySecure interface
  • Reading distances
    Reading distances: Up to 6 cm / 2.36’’ with a 125 kHz card - Up to 4 cm / 1.57’’ with a MIFARE DESFire® EV2 card
  • Power supply
    Power supply: 7 VDC to 28 VDC / consumption 230 mA / 12 VDC max
  • Material
    Material: ABS-PC UL-V0 (black)
  • Color
    Color: black
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 156.4 x 80 x 30.5 mm / 6.14’’ x 3.15’’ x 1.2’’ (general tolerance following ISO NFT 58-000 standard)
  • Operating temperatures
    Operating temperatures: - 20°C to + 70°C / - 4°F to 158°F / Humidity: 0 - 95%
  • Protection
    Protection: Accelerometer-based tamper detection system with key deletion option (patented solution) and/or message to the controller

*Our readers only read the iCLASS™ chip serial number / UID PICO1444-3B. They do not read iCLASS™ cryptographic protection or the HID Global serial number / UID PICO 15693.



ARC k dimension Dec2017 FR

Logos CE, FCC et UL

Part numbers

Picto flèche verte Read only

Wiegand protocol or Clock&Data interface: ARC-RX1-K/BF5-xx/1
Wiegand protocol or Clock&Data interface - Secure communication Secure Plus: ARC-SX1-K/BF5-xx/1
RS232 interface: ARC-RX2-K/BF5-5AB/1
RS485 interface: ARC-RX3-K/BF5-7AB/1
RS485 interface - Secure communication with EasySecure interface: ARC-RX3-K/BF5-7AA/1
RS485 interface - Secure communication Secure Plus: ARC-SX3-K/BF5-7AB/1
RS485 interface - Secure communication Secure Plus with EasySecure interface: ARC-SX3-K/BF5-7AA/1

Picto flèche rouge Controlled by protocol

SSCP® v1 - RS232 : ARC-WX2-K/BF5-5AA/1
SSCP® v1 - RS485 : ARC-WX3-K/BF5-7AA/1
SSCP® v2 - RS485 : ARC-WX3-K/BF5-7AD/1
OSDP™ v1 & v2 - RS485 : ARC-WX3-K/BF5-7OS/1
