The Architect® ARC-H  is a MIFARE® DESFire® EV3 desktop reader WEDGE with keyboard emulation. It is well suited for an easily connection with your computers, printers or other business applications, and benefit from the advantages of a USB WEDGE output. This user interface emulates a keyboard, without having to install any third-party software.

The most awarded access control reader around the worldbandeau logo Trophees STid 2017 V2

Logo of Architect blue for the ARC-A by STid Industry

The perfect blend of high security and scalability

  • Picture from the left profile of a black ARC-H by STid Industry
  • Picture from the front side of a black ARC-H by STid Industry
  • Picture from the right profile of a black ARC-H by STid Industry
Icon for the smart keyboard emulation of the ARCS-H/BT by STid Industry

A smart keyboard emulation tool

The keyboard interface functionality enables users to retrieve credential data (from cards, key holders, wristbands, etc.) and to transfer it to any application by emulating the key sequence. It avoids manual entry of the data on the card in an application.

The data structures and output formats can be entirely configured: keyboard layout (AZERTY by default), keys, timing, etc.

   Icon for the ease of integration of the ARCS-H/BT by STid Industry

Easy integration

The WEDGE reader is independent from the application and the operating system and does not require any drivers or third-party software to be installed, guaranteeing optimal operation in any computing environment.

 Icon for the workstation feature of the ARCS-H/BT by STid Industry

Workstations

 Icon for the printers feature of the ARCS-H/BT by STid Industry

Printers / photocopiers

Icon for the coffee machine feature of the ARCS-H/BT by STid Industry

Coffee machines / vending machines

Icon for the other OEM applications of the ARCS-H/BT by STid Industry

Other OEM applications

Welcome to high security

Logos representing the high security of the ARC-H by STid Industry

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN). It’s a recognition of our unique know-how, the technological and security expertise that are implemented in your access architecture, whether new or existing.

ARC-H reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (3DES, AES, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).





logos nxp mifare em nfc cps3 for ARC-H

Logo of SECARD for the ARC-G by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARC-G by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

The most secure protocole on the market

logo sscp for ARC-G

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Standing the test of time

Design to push the boundaries, The ARC-H reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high vandal proof resistance (IK10).

Download the resistance reportVideo of the ARC-H's crash test

Picture showing the resistance of the ARC-H by STid Industry

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

A spectacular experience

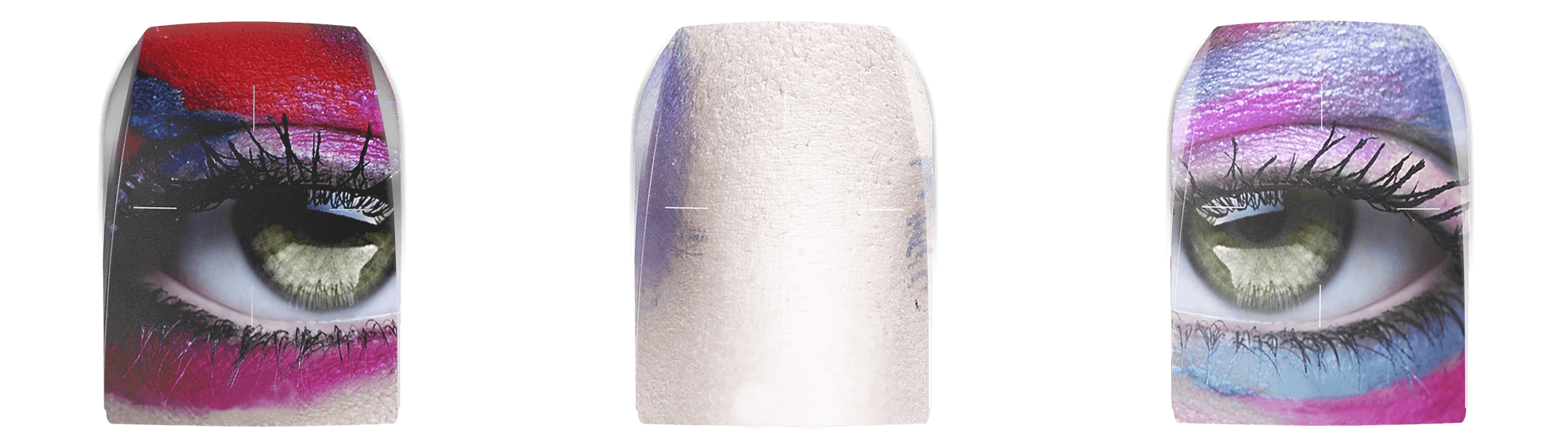

Picture for the spectacular experience of the ARC-H by STid Industry

New customization technology "Skin effect"

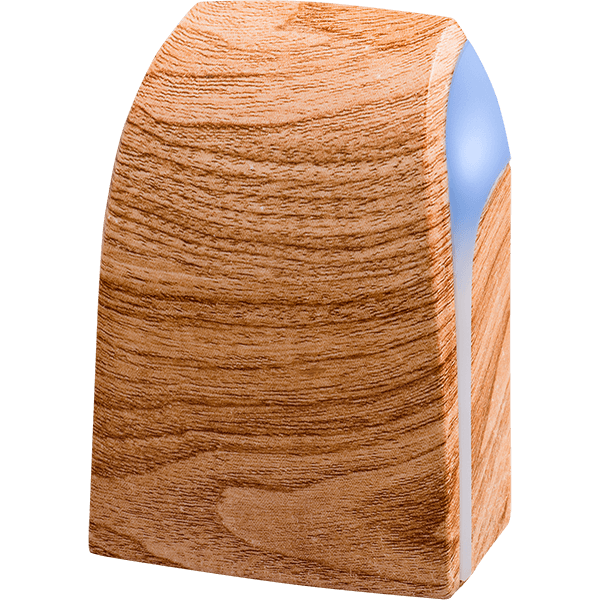

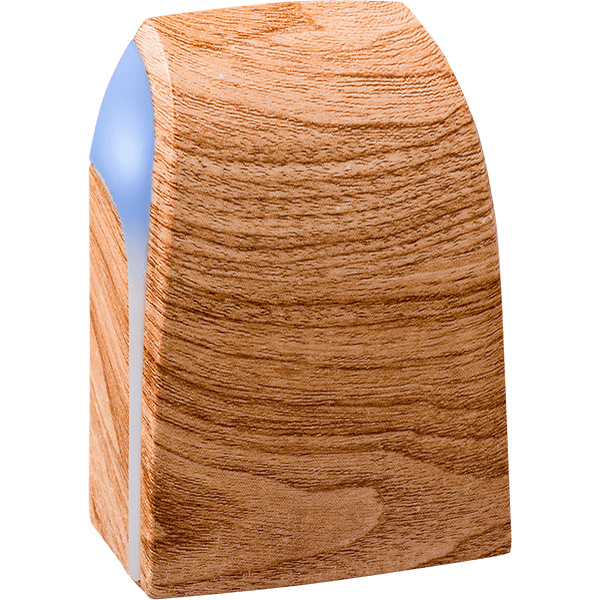

  • Picture of an ARC-H from the left profile with a brow hood skin

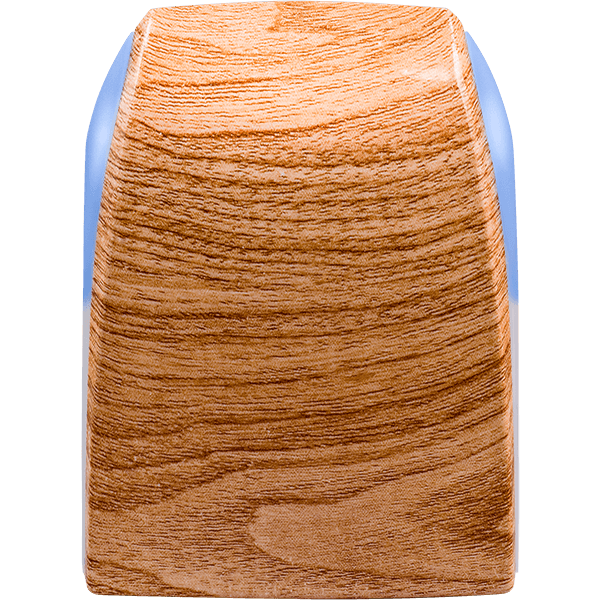

  • Picture of an ARC-H from the front side with a brow hood skin
  • Picture of an ARC-H from the right profile with a brow hood skin

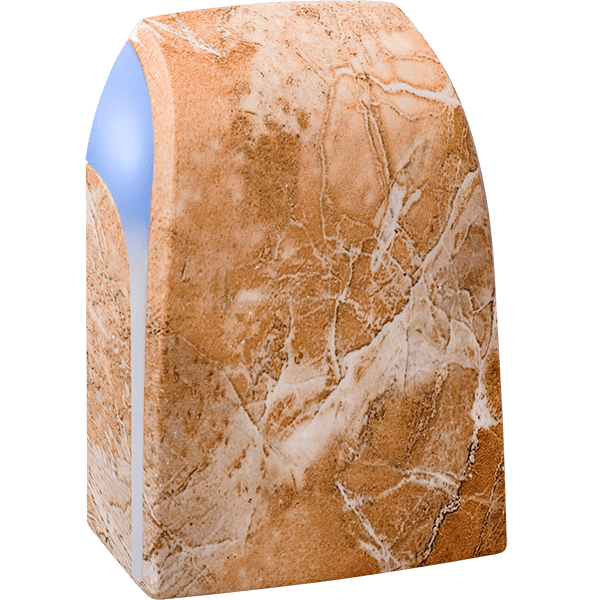

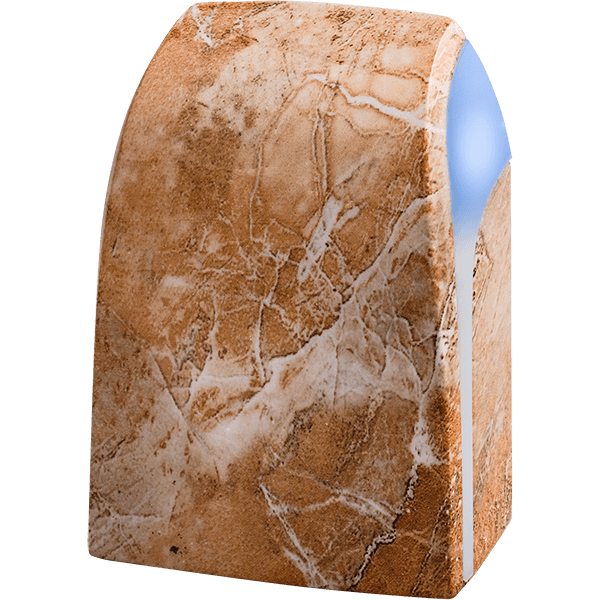

  • Picture of an ARC-H from the left profile with a red marble skin

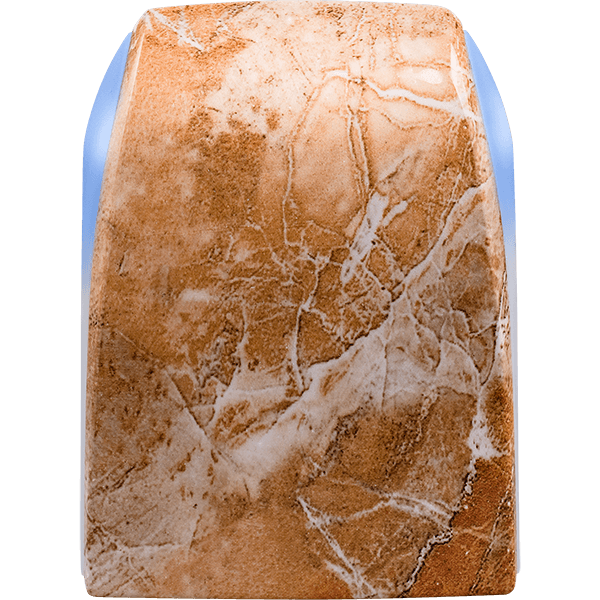

  • Picture of an ARC-H from the front side with a red marble skin
  • Picture of an ARC-H from the right profile with a red marble skin

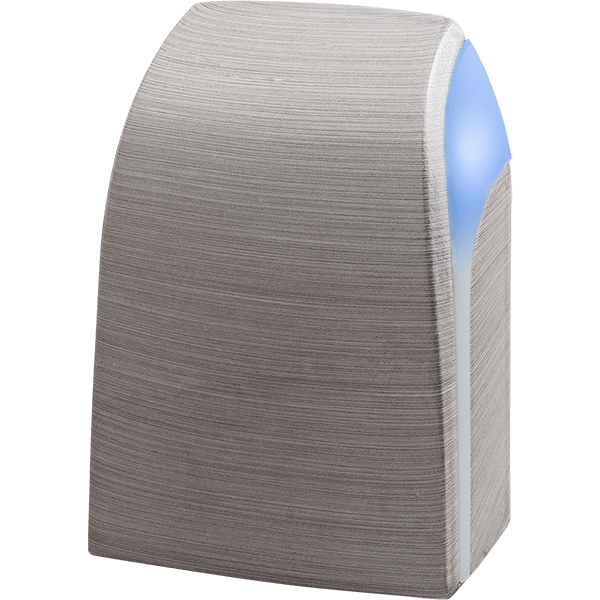

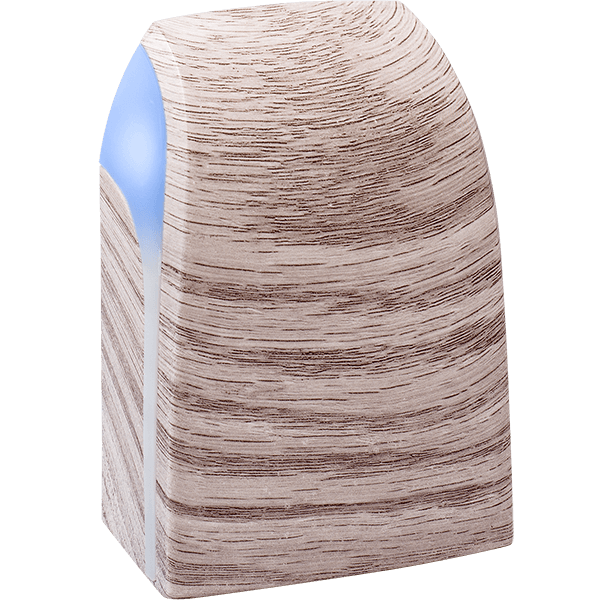

  • Picture of an ARC-H from the left profile with a grey hood skin

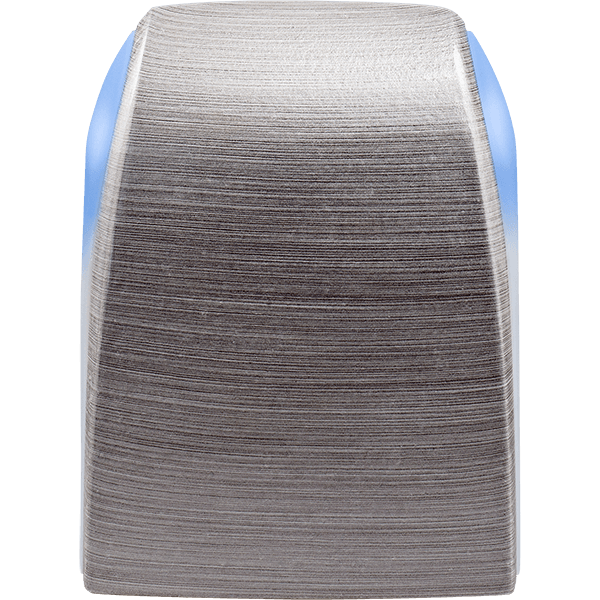

  • Picture of an ARC-H from the front side with a grey hood skin
  • Picture of an ARC-H from the right profile with a grey hood skin

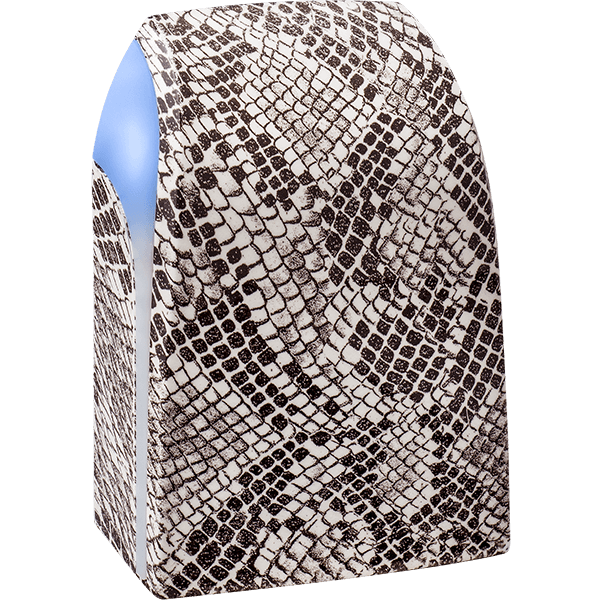

  • Picture of an ARC-H from the left profile with a reptile skin

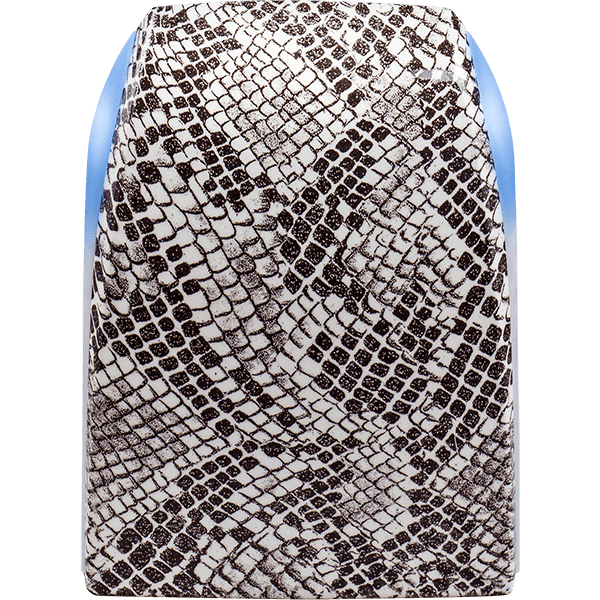

  • Picture of an ARC-H from the front side with a reptile skin

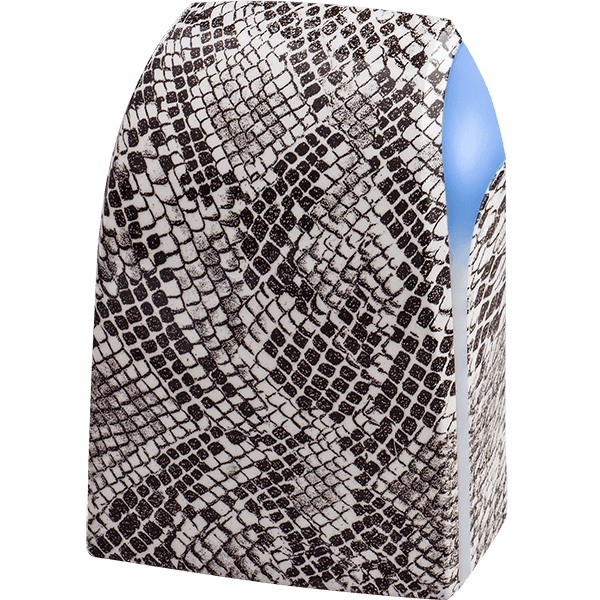

  • Picture of an ARC-H from the right profile with a reptile skin

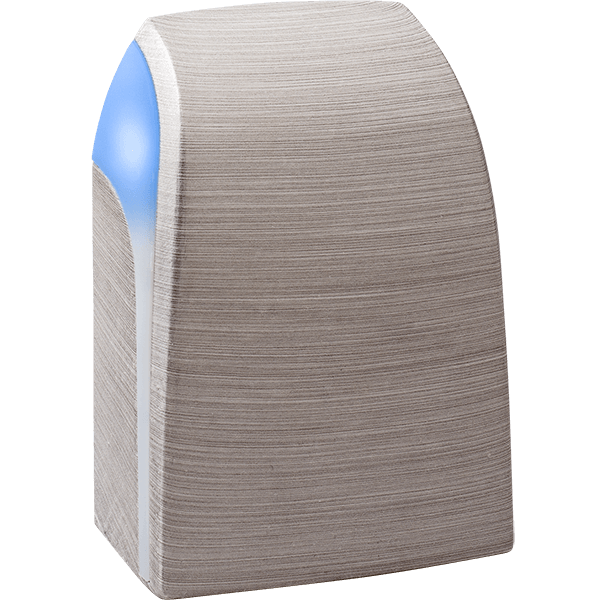

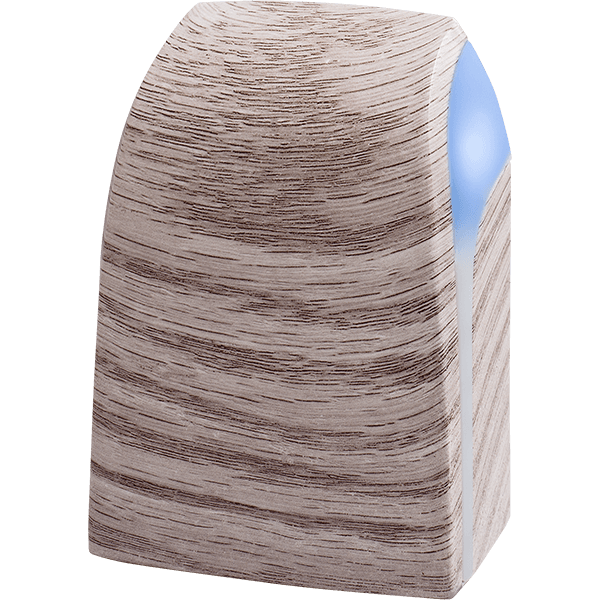

  • Picture of an ARC-H from the left profile with a neutral hood skin

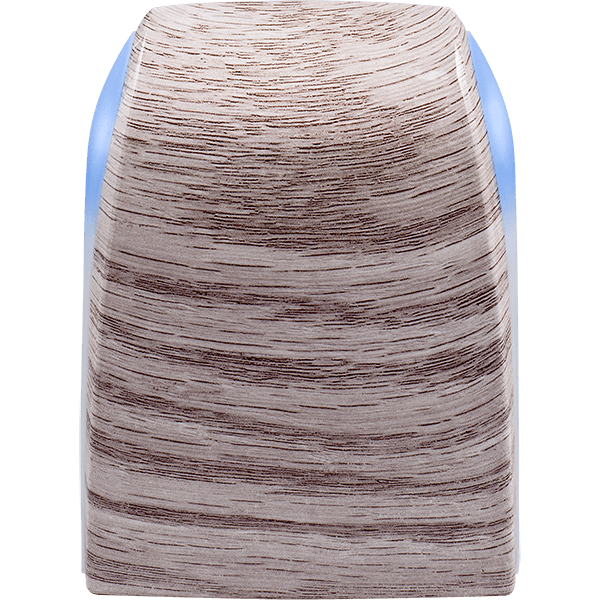

  • Picture of an ARC-H from the front side with a neutral hood skin
  • Picture of an ARC-H from the right profile with a neutral hood skin

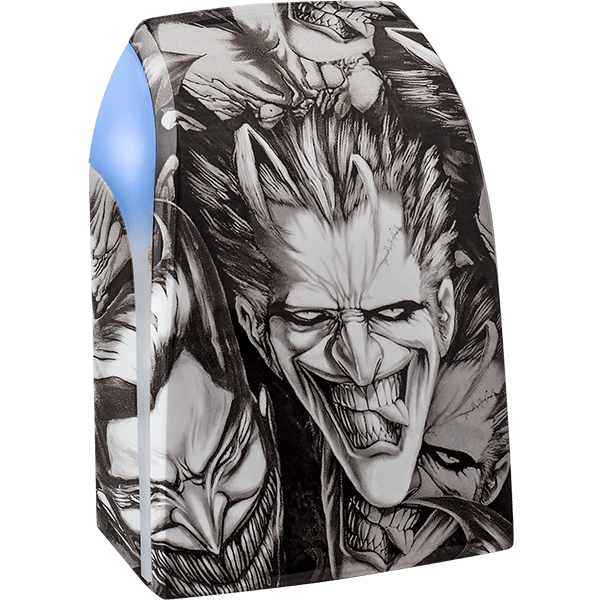

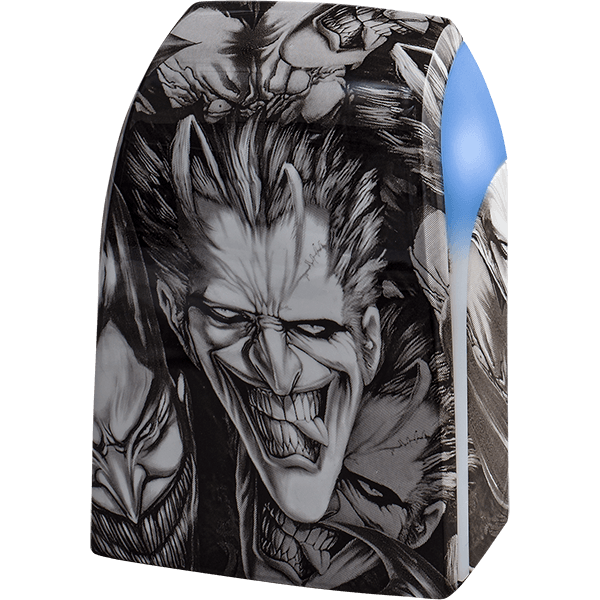

  • Picture of an ARC-H from the left profile with a joker skin

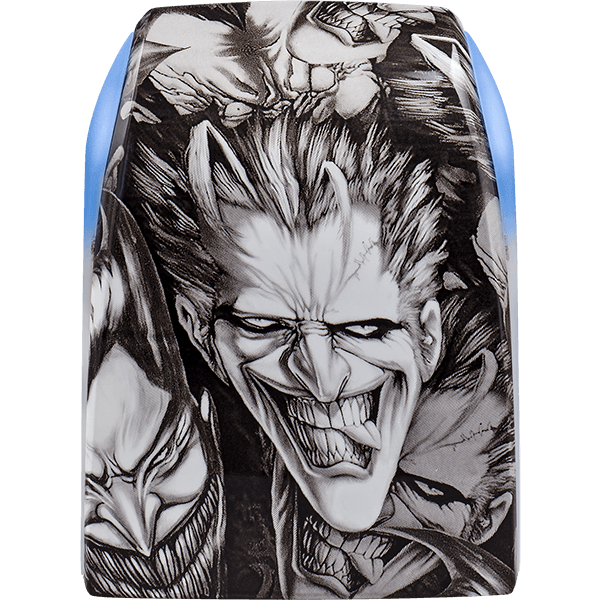

  • Picture of an ARC-H from the front side with a joker skin
  • Picture of an ARC-H from the right profile with a joker skin

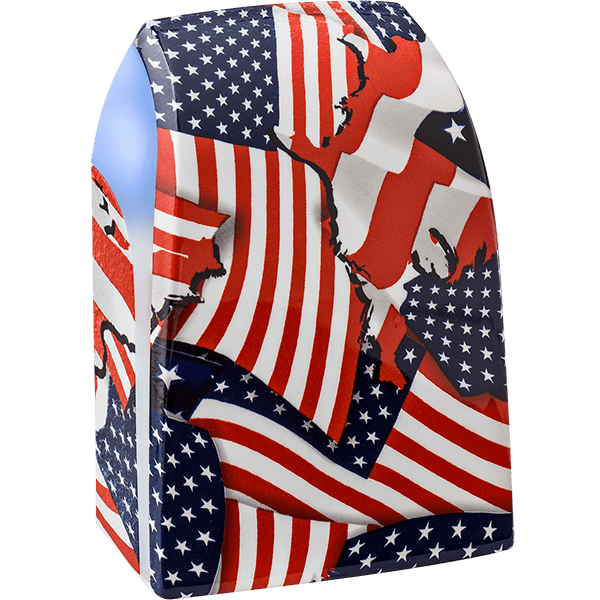

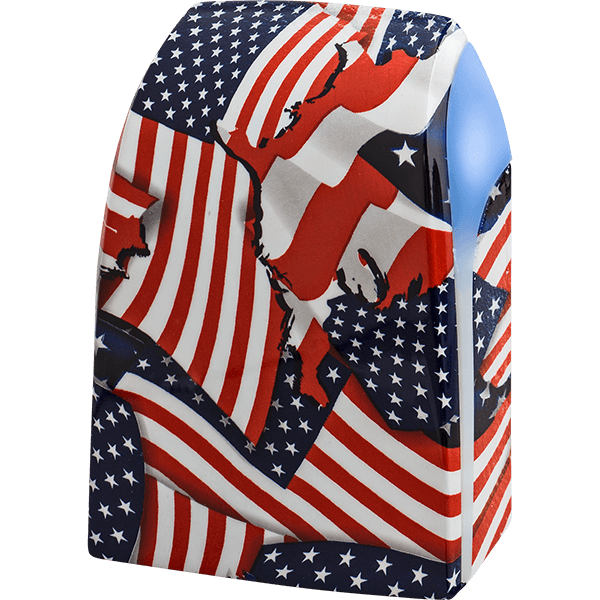

  • Picture of an ARC-H from the left profile with the USA flag skin

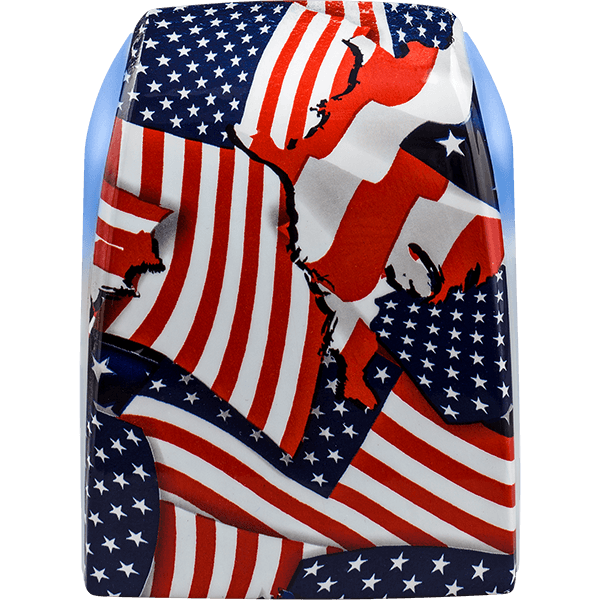

  • Picture of an ARC-H from the front side with the USA flag skin
  • Picture of an ARC-H from the right profile with the USA flag skin

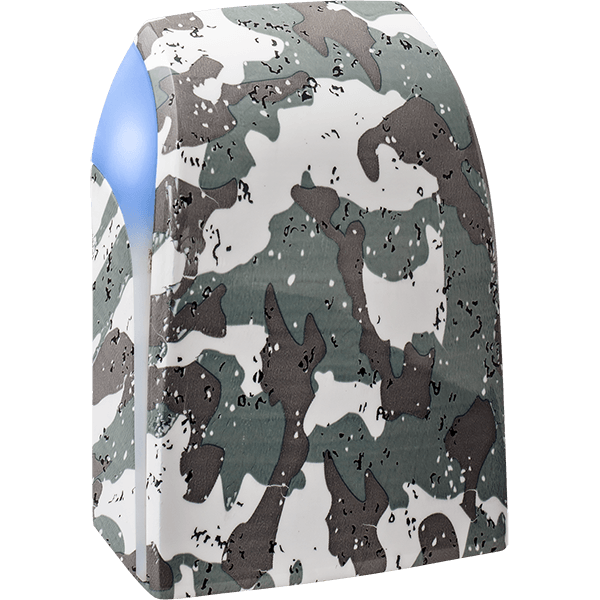

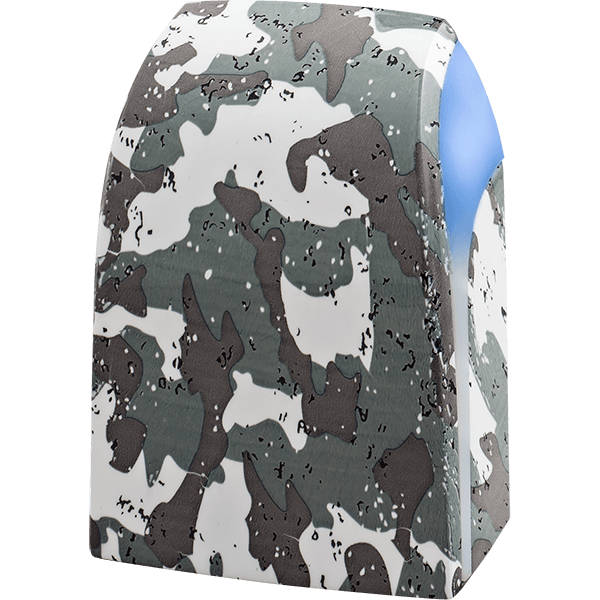

  • Picture of an ARC-H from the left profile with a military skin

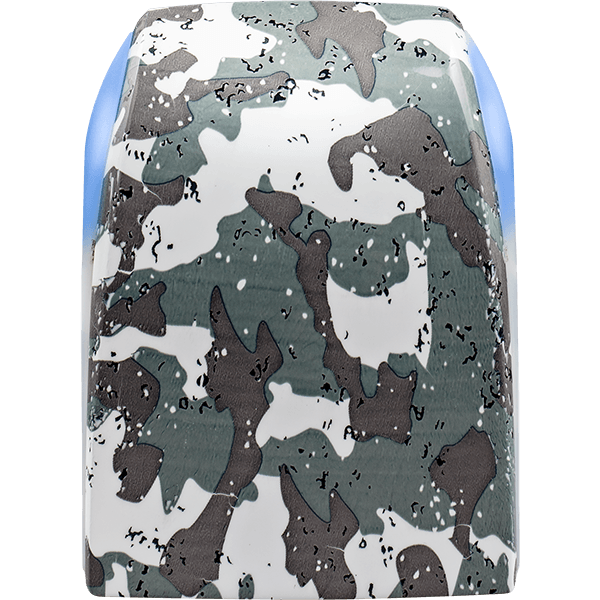

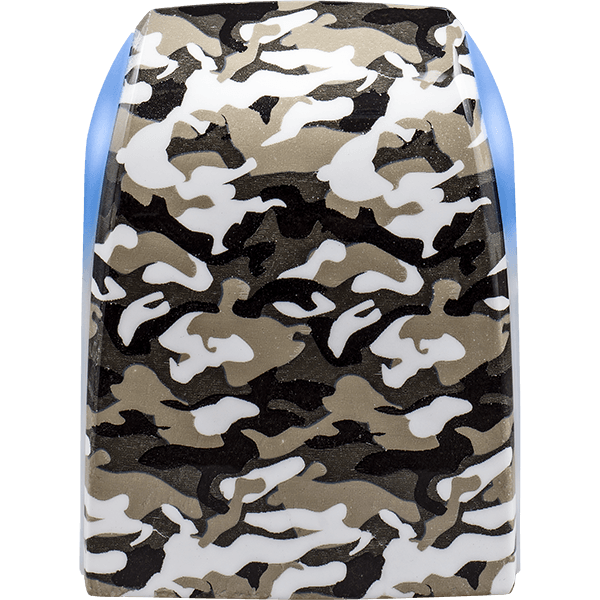

  • Picture of an ARC-H from the front side with a military skin
  • Picture of an ARC-H from the right profile with a military skin

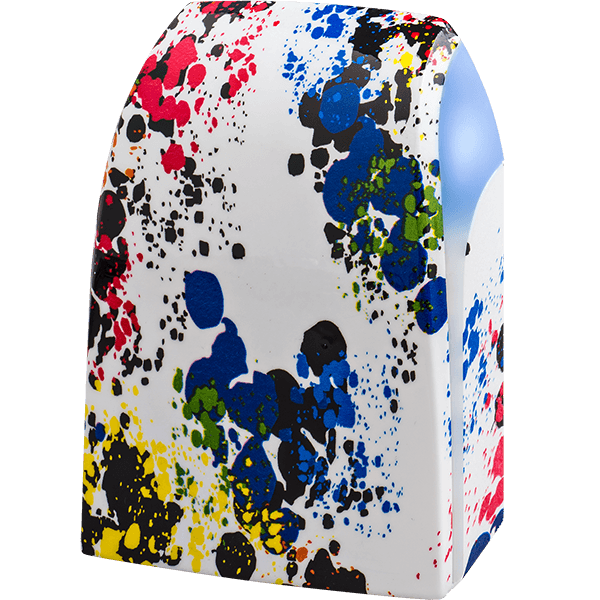

  • Picture of an ARC-H from the left profile with a color skin
  • Picture of an ARC-H from the front side with a color skin
  • Picture of an ARC-H from the right profile with a color skin

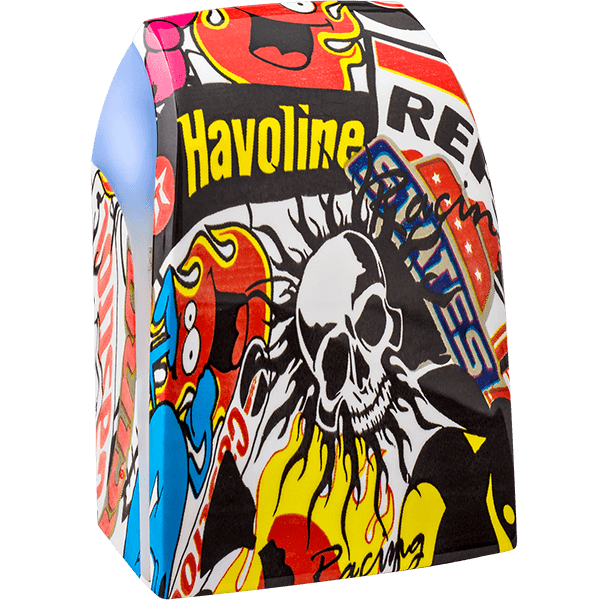

  • Picture of an ARC-H from the left profile with a skull skin
  • Picture of an ARC-H from the front side with a skull skin
  • Picture of an ARC-H from the right profile with a skull skin

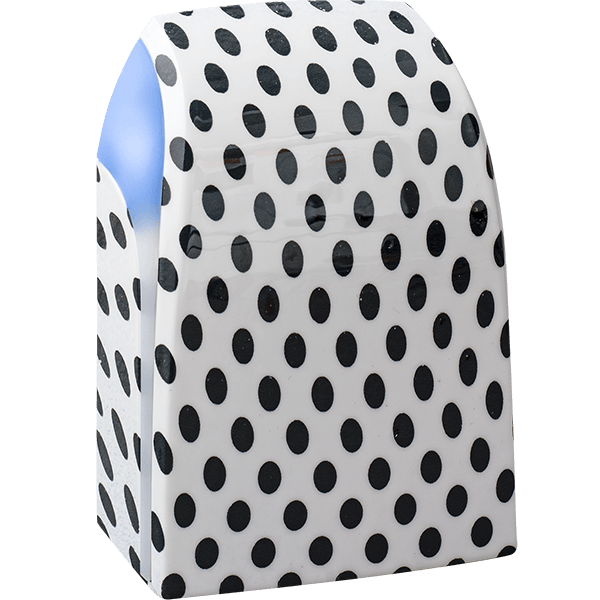

  • Picture of an ARC-H from the left profile with a black dotes skin

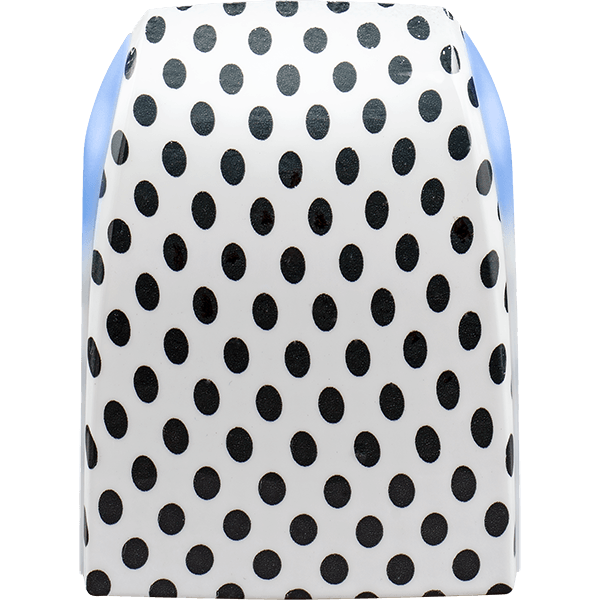

  • Picture of an ARC-H from the front side with a black dotes skin

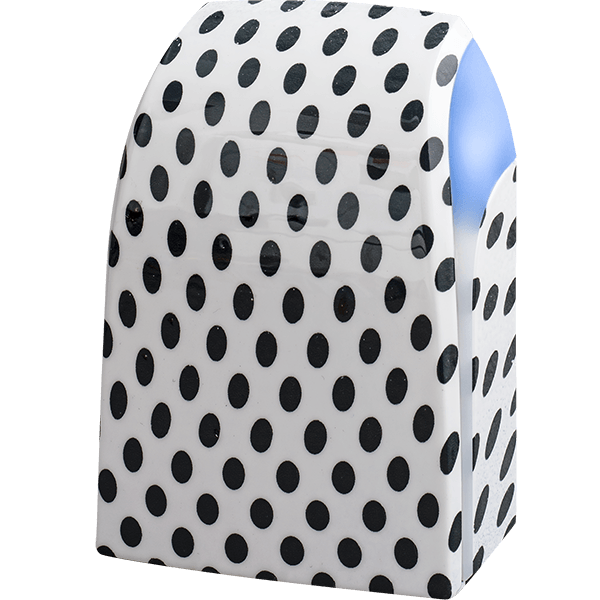

  • Picture of an ARC-H from the right profile with a black dotes skin

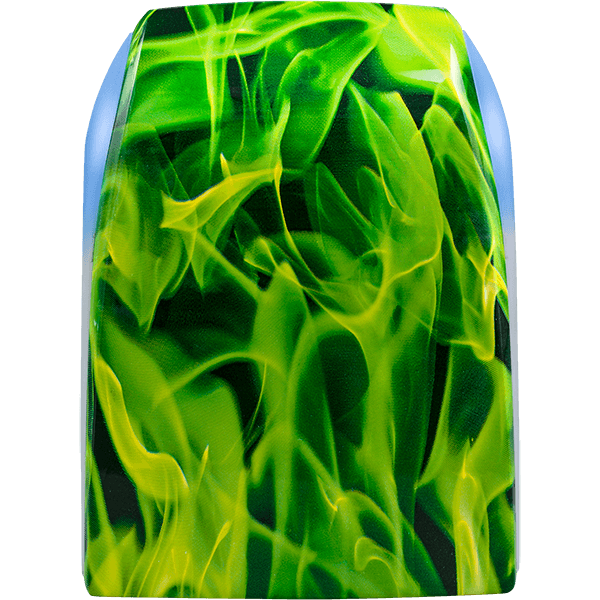

  • Picture of an ARC-H from the front side with a green flames skin
  • Picture of an ARC-H from the front side with a graph skin

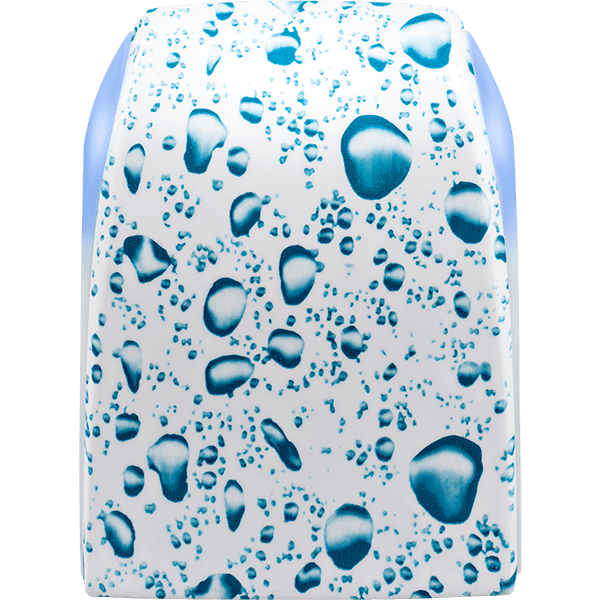

  • Picture of an ARC-H from the front side with a water skin

Download the "Skin effect" catalog

Data sheet

  • Frequency
    Frequency: 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass® (CSN only), iCLASS™ cards (CSN only)*, STid Mobile ID® (NFC virtual card), Apple Wallet (NFC Access virtual credential)
  • Functions
    Functions: Read only: CSN or private ID (sector/file)
  • Interfaces
    Interfaces: USB 2.0
  • Reading distances
    Reading distances: 0 - 8 cm / 3.15’’
  • Power supply
    Power supply: USB 1.5 m / 3.28 ft cable
  • Material
    Material: ABS-PC-UL-V0 (black)
  • Color
    Color: Black – Many shell customization possibilities
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 106.6 x 80 x 25.7 mm / 4.19’’ x 3.15’’ x 0.98’’
  • Operating temperatures
    Operating temperatures: - 20°C to + 70°C / - 4°F to + 158°F
  • Protection
    Protection: Reinforced vandal proof structure IK10
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 - 95%

*Our readers can only read the UID/Chip Serial Number. They cannot read secure HID Global’s iCLASS™ cryptographic protections.

Picture of the ARC-G with its dimensions

CE FCC Logos grey 250px

Part numbers



Picto R Read only
    Standard version: ARC-R35-H/PH5-5AB/1
    Version with specific configuration:ARC-R35-H/PH5-XX/1
