ARC-J - 125 kHz + 13.56 MHz dual-frequency keypad reader

ARC-J - 125 kHz + 13.56 MHz dual-frequency keypad reader

STid has designed the Architect® Hybrid 125 kHz + 13.56 MHz vandal-proof keypad reader for access control - perfect blend of two identification technologies - to facilitate your migrations to advanced security levels.

Le lecteur de contrôle d'accès le plus récompensé au monde bandeau logo Trophees STid 2017 V2

Logo of Architect blue for the ARCS-J/BT by STid Industry

The perfect blend of high security and scalability

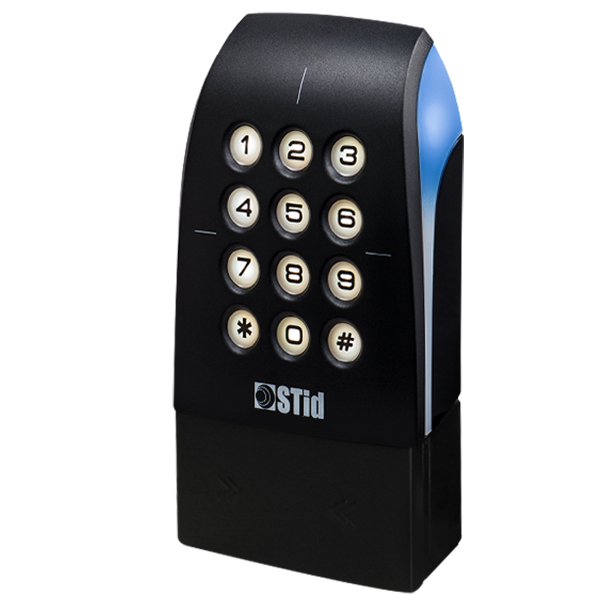

  • Picture from the left profile of a black ARCS-J/BT by STid Industry

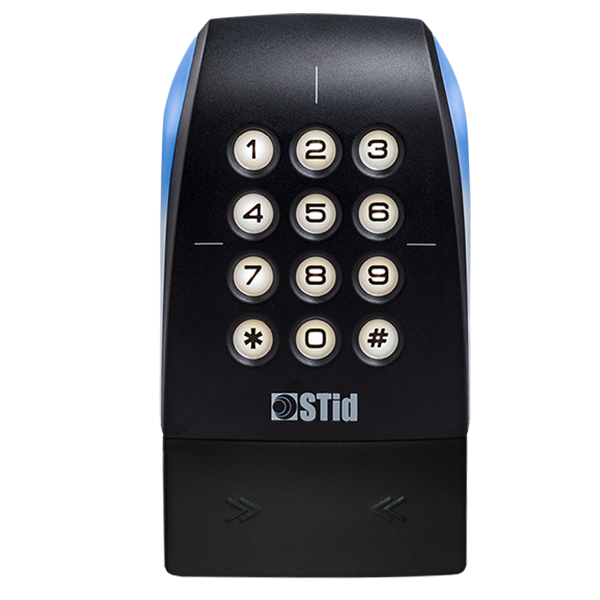

  • Picture from the front side of a black ARCS-J/BT by STid Industry

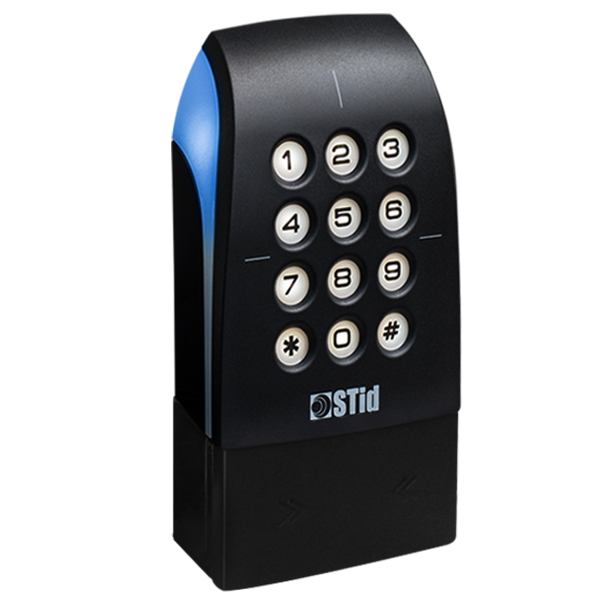

  • Picture from the right profile of a black ARCS-J/BT by STid Industry

Manage with ease a multi-factor identification

Both reader and keypad, the device allows a dual-identification by combining card and/or PIN code identifications.

Thanks to its various operating modes (card AND key or card OR key), you can use the keypad to identify people or to activate additional functions (activation of the intrusion alarm…).

Picture for the multi-factor security of the ARCS-J/BT

Make your technological migrations easy

The Architect® Hybrid keypad reader makes it easy to manage extensions, upgrades and technology migrations. It combines two identification frequencies: 125 kHz (EM, Crosspoint…) and 13.56 MHz (all the MIFARE® chips including DESFire® EV2, NFC, CSN of iCLASS™*, CSN of PicoPass®…). If you need to set up a complex multi-site configuration, this reader can be used to read a range of different cards.





*Our readers read only the iCLASS™ UID / Chip Serial Number. They do not read secure HID Global’s iCLASS™ cryptographic protections.

Picture of a women jumping for ARC-J by STid Industry

Welcome to high security

Logos representing the high security of the ARC-J by STid Industry

All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI). The reader uses the latest MIFARE® DESFire® EV2 contactless chip technologies with new data security mechanisms:

  • Secure Messaging EV2: secure transaction method based on AES-128 with protection against interleaving and replay attacks.
  • Proximity Check: improved protection against relay attacks.





logos nxp mifare em nfc cps3 for ARC-J

Logo of SECARD for the ARC-J by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARC-J by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp US

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 et V2

logo sscp US

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Picture showing the self-protection of the ARCS-J/BT by STid Industry

Standing the test of time

Designed to push the boundaries, the Architect® Hybrid keypad reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high impact resistance (IK08).

Download the resistance reportVideo of the ARC-J's crash test

Picture showing the resistance of the ARC-J by STid Industry

Create your own upgradable configuration

The Architect® series is intuitive and dynamic, and consists of 6 interchangeable modules
that can easily be connected to a common smart RFID core.

This easy and cost saving modular approach allows autonomy on the security access management.



STid Schema ARC evolutivite BT US

arc modularity video
Learn more about
Architect®Series modularity

Datasheet

  • Frequency
    Frequency: 125 kHz + 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: EM42xx / EM4x50 / Wiegand 26, 34, 35 & 37 bits format / Nedap / Crosspoint MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1 & EV2, NFC (HCE), SMART MX, CPS3, PicoPass® (CSN only), iCLASS™ (CSN only)*
  • Functions
    Functions: Read only: CSN, private ID (sector/file) or Secure Protocol (Secure Plus) / Secure Read Write
  • Interfaces
    Interfaces: 2 variants: - TTL/RS232 protocol: Data Clock (ISO2), Wiegand (ciphered mode Sx1) or RS232 (ciphered mode Sx2) - TTL/RS485 protocol: Data Clock (ISO2), Wiegand (ciphered mode Sx1) or RS485 (ciphered mode Sx3) with secure communication protocols SSCP & SSCP2 ; OSDP™ V1 (plain communication) & V2 (SCP secure communication) Compatible with EasySecure interface
  • Reading distances
    Reading distances: Up to 6 cm / 2.36’’ with a 125 kHz card / Up to 6 cm / 2.36’’ with a MIFARE DESFire® EV2 card
  • Power supply
    Power supply: 7 VDC to 28 VDC / Power requirement 190 mA / 12 VDC
  • Material
    Material: ABS-PC UL-V0 (black)
  • Color
    Color: black or white - Many shell customization possibilities for 13.56 MHz reader
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 145.64 x 79.93 x 25.7 mm / 5.71’’ x 3.11’’ x 0.98’’ (general tolerance following ISO NFT 58-000 standard)
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 22°F to + 158°F / Humidity: 0 - 95%
  • Protection
    Protection: IK08 certified reinforced vandal-proof structure / Accelerometer-based tamper detection system with key deletion option (patented)
  • Resistance
    Resistance: IP65 level - Weather-resistant with waterproof electronics (CEI NF EN 61086 homologation)

*Our readers can only read the UID/Chip Serial Number. They cannot read secure HID Global’s iCLASS™ cryptographic protections.



Picture of the ARC-J with its dimensions

picto CE FCC UL

Part numbers

Standards versions

Picto R Read Only

Secure - TTL: ARC-Rx1-J/BF5-xx/y
Easyline pre-configured offer - Wiegand: ARC-Rx1-J/PC2-xx/1
Secure / Secure Plus - TTL: ARC-Sx1-J/BF5-xx/y
Secure - RS232: ARC-Rx2-J/BF5-5AB/y
Secure / Secure Plus - RS232: ARC-Sx2-J/BF5-5AB/y
Secure - RS485: ARC-Rx3-J/BF5-7AB/y
Secure / Secure Plus - RS485: ARC-Sx3-J/BF5-7AB/y
Secure / Interface EasySecure - RS485: ARC-Rx3-J/BF5-7AA/y
Secure / Secure Plus / Interface EasySecure - RS485: ARC-Sx3-J/BF5-7AA/y



picto RW Controlled by protocol

Secure - SSCP RS232: ARC-Wx2-J/BF5-5AA/y
Secure - SSCP RS485: ARC-Wx3-J/BF5-7AA/y
Secure - SSCP2 RS485: ARC-Wx3-J/BF5-7AD/y
Secure - OSDPTM RS485: ARC-Wx3-J/BF5-7OS/y

y: casing color (1: black - 2: white)
