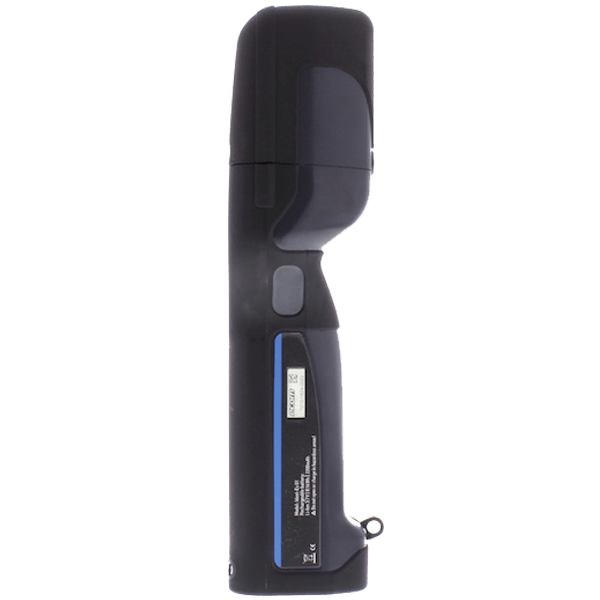

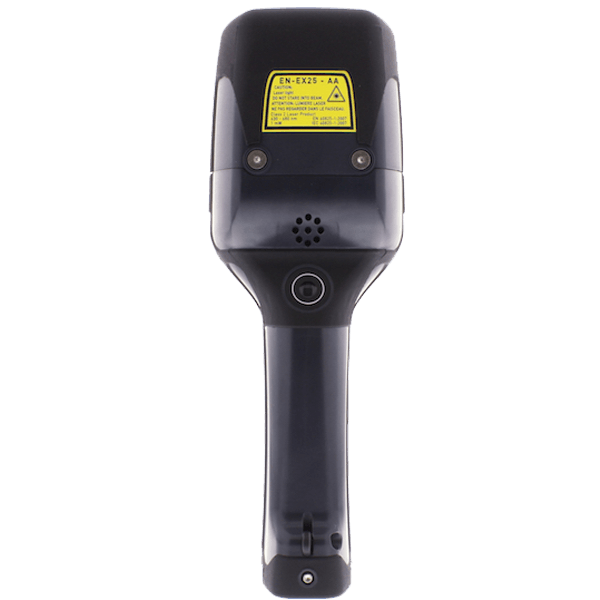

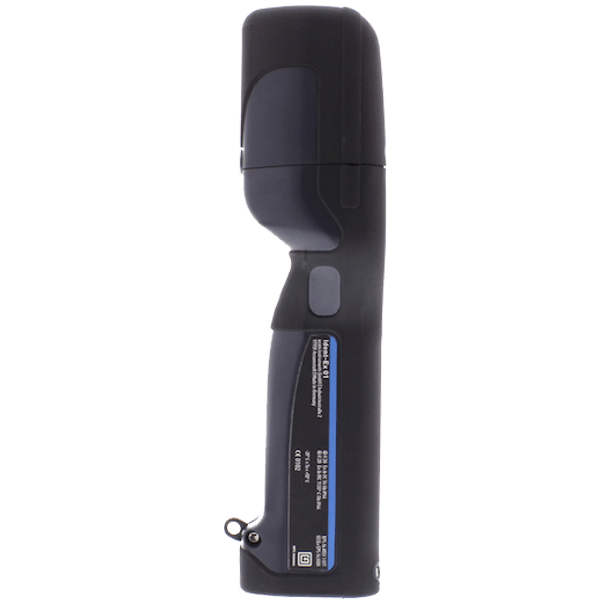

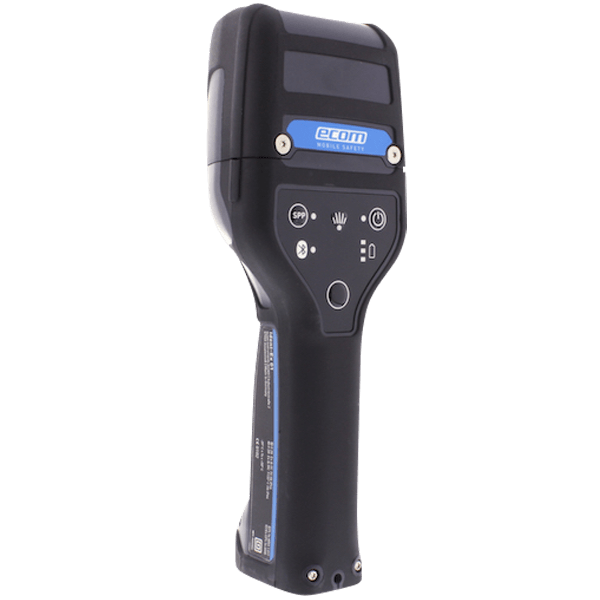

The ATX Ident-Ex® is an intrinsically safe handled UHF terminal with ATEX / IECEx zone 1/21 and class I, II, III, division 1 approval. The innovative modular concept provides multiple configuration options with state of the art technology for virtually every application in hazardous and explosive environments.
Certifications
ATEX EUROPE Ex II 2 G Ex ib IIC T4 Gb IP64 Ex II 2 D Ex ib IIIC T135°C Db IP6X
IECEx INTERNATIONAL Ex ib IIC T4 Gb IP64 Ex ib IIIC T135°C Db IP6X
NEC/CEC (NORTHERN AMERICA) Class I, II, III Div. 1 Groups A-G, T4, T135°C Cl I Zn 1, AEx ia IIC T4 Gb IP64 Cl II Zn 21, AEx ia IIIC T135°C Db IP64 Ex ia IIC T4 Gb Ex ia IIIC T135°C Db
ATEX & IECEx certifications
STid has developed a certified RFID reader range to meet the two key in industries with ATEX zones - security and reliability.
Our solutions are compliant with all the international standards of the market: ATEX (EN60079) & IECEx certifications; European Directives (99/92/EC and 94/9/EC). They are well suited for all your assets identification applications in explosive environments.
The ATX Ident-Ex® handled terminal comes with the highest number of global approvals for use in such areas - from ATEX through IECEx to NEC.
Certifications
ATEX EUROPE Ex II 2 G Ex ib IIC T4 Gb IP64 Ex II 2 D Ex ib IIIC T135°C Db IP6X
IECEx INTERNATIONAL Ex ib IIC T4 Gb IP64 Ex ib IIIC T135°C Db IP6X
NEC/CEC (NORTHERN AMERICA) Class I, II, III Div. 1 Groups A-G, T4, T135°C Cl I Zn 1, AEx ia IIC T4 Gb IP64 Cl II Zn 21, AEx ia IIIC T135°C Db IP64 Ex ia IIC T4 Gb Ex ia IIIC T135°C Db
Solutions designed for industries with ATEX zones
Vehicle and truck identification
Applications in environments with explosive atmosphere
Track pallets, rolls, containers, returnable items, etc.
People identification
Features
Benefits
Long service life due to ruggedness and wear-resistance
State-of-the-art technology with a flexible, modular head system
Pairable and compatible with any Bluetooth® device
Identification high performances
The ATEX terminal is designed for short-range reading and writing applications (up to 4.9 ft) for fast, simple and selective secure contactless identification. It is designed for fast, accurate and reliable data collection, whether it is a barcode reading, a short-range RFID reading or an intensive RFID inventory.
Build on mobility
Its ergonomics, its compatibility with all Bluetooth® smartphones or tablets and its more than 12 hours autonomy in operation (more than 10,000 scans with a battery charge, sufficient for a full workday) make it the most powerfull tool for all applications requiring high mobility.
The ATX Ident-Ex® terminal has an intrinsically safe mechanism for use in explosive atmospheres.
Identification high performances
The ATEX terminal is designed for short-range reading and writing applications (up to 4.9 ft) for fast, simple and selective secure contactless identification. It is designed for fast, accurate and reliable data collection, whether it is a barcode reading, a short-range RFID reading or an intensive RFID inventory.
Build on mobility
Its ergonomics, its compatibility with all Bluetooth® smartphones or tablets and its more than 12 hours autonomy in operation (more than 10,000 scans with a battery charge, sufficient for a full workday) make it the most powerfull tool for all applications requiring high mobility.
The ATX Ident-Ex® terminal has an intrinsically safe mechanism for use in explosive atmospheres.
*Tag & environment dependent.
Benefits
Long service life due to ruggedness and wear-resistance
State-of-the-art technology with a flexible, modular head system
Pairable and compatible with any Bluetooth® device
Upgradable configuration to meet all your needs
Using a unique modular design, the T-ATX can be specifically configured to the customer‘s requirements by selecting different head modules. When requirements change, the head module on the unit can be replaced by another one (LF, HF or UHF; barcode imager).
Robustness and reliability
Compact and ultra-rugged, the ATX Ident-Ex® is ideal for all applications in harsh and ruggud environments.
Return on investment
Reduce paperwork and shortens office working hours by direct processing and availability in the ERP system or similar
Reduce inspection times by up to 30%
Improve data quality and reduces error rates
Upgradable configuration to meet all your needs
Using a unique modular design, the T-ATX can be specifically configured to the customer‘s requirements by selecting different head modules. When requirements change, the head module on the unit can be replaced by another one (LF, HF or UHF; barcode imager).
Robustness and reliability
Compact and ultra-rugged, the ATX Ident-Ex® is ideal for all applications in harsh and ruggud environments.
Return on investment
Reduce paperwork and shortens office working hours by direct processing and availability in the ERP system or similar
Reduce inspection times by up to 30%
Improve data quality and reduces error rates
Data sheet
Frequency: UHF
Standards: CE & FCC certifications
Chip: EPC1 Gen 2
Functions: Read write
Interfaces: Bluetooth®
Reading distances: RFID = up to 4.9 ft; Barcode = 5.9’’ to 49 ft; Bluetooth® = Class II, up to approx. 32.8 ft
Power supply: Rechargeable Li-Ion battery
Color: Black
Dimensions (h x w x d): 221 x 84 x 58 mm - 8.7x 3.3’’ x 2.3’’ / 235 x 84 x 58 mm - 9.3’’ x 3.3’’ x 2.3’’ (With Ex-25 head modul)
Processor and memory: 2 M Octets : 2D QR Codes = + 600; RFID tags (Only EPC) = +5000
