ARC-C - 13.56 MHz DESFire® EV3 touchscreen/keypad readers

ARC-C - 13.56 MHz DESFire® EV3 touchscreen/keypad readers

By developing the Architect® innovative readers, STid has created the perfect blend of high security and scalability. The ARC-C is a secure reader combining RFID technologies with a color touch screen to display a keypad or additional information.



The most awarded access control reader around the world  logo 16 awards 321x90 website

Logo of Architect blue for the ARC-C by STid Industry

The perfect blend of high security and scalability

  • Picture from the left profile of a black ARC-C by STid Industry
  • Picture from the front side of a black ARC-C by STid Industry
  • Picture from the right profile of a black ARC-C by STid Industry

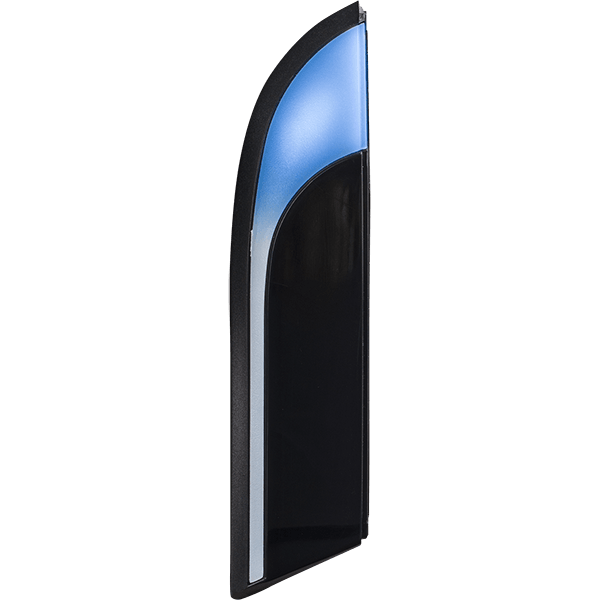

  • Picture from the right side of a black ARC-C by STid Industry

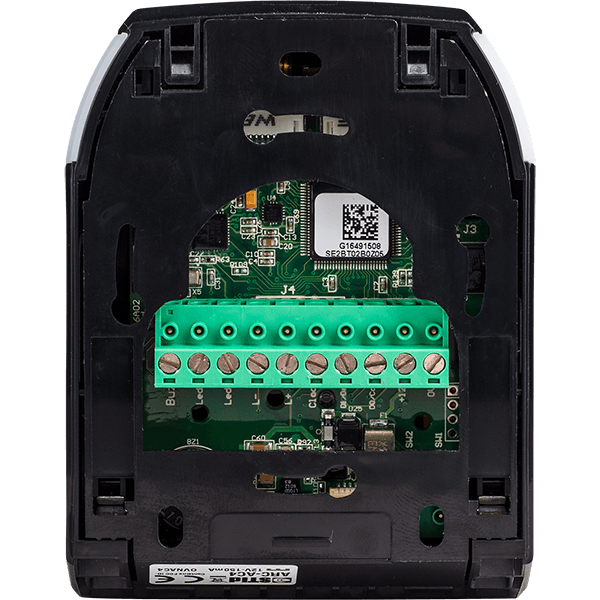

  • Picture from the back of a black ARC-C by STid Industry

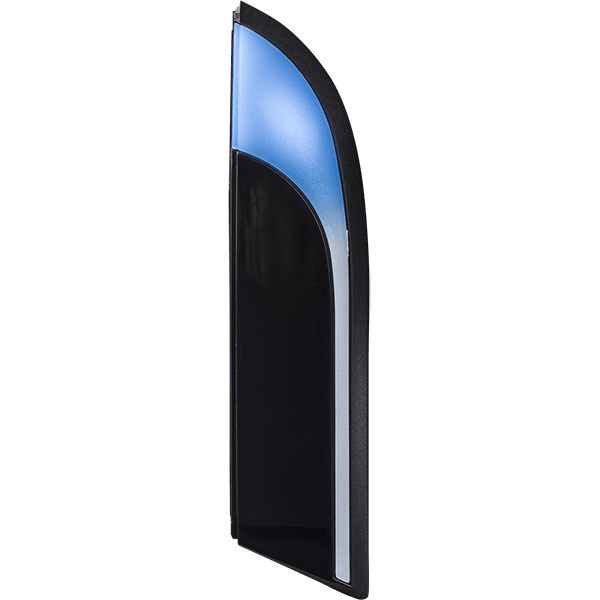

  • Picture from the left side of a black ARC-C by STid Industry
  • Picture from the left profile of a white ARC-C by STid Industry
  • Picture from the front side of a white ARC-C by STid Industry
  • Picture from the right profile of a white ARC-C by STid Industry

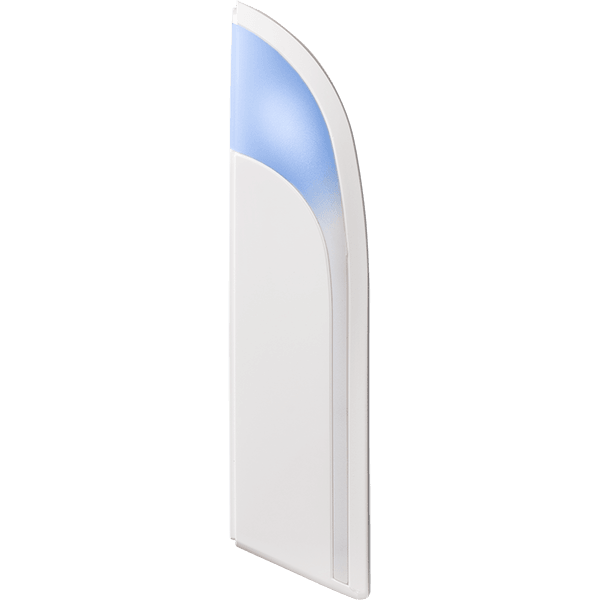

  • Picture from the right side of a white ARC-C by STid Industry

  • Picture from the back of a white ARC-C by STid Industry

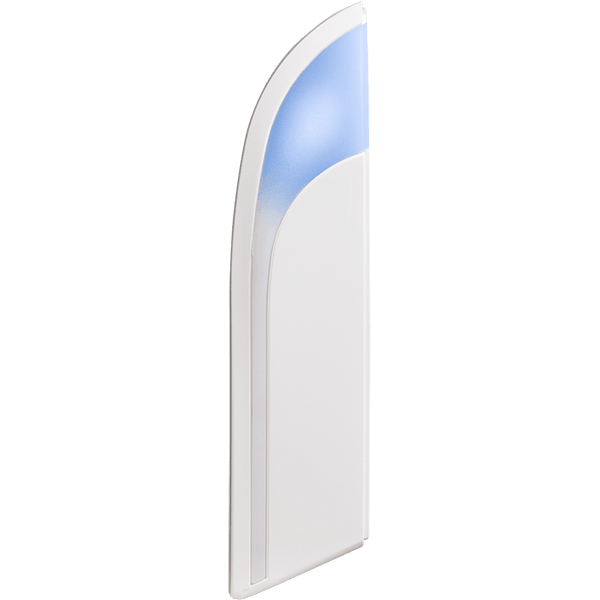

  • Picture from the left side of a white ARC-C by STid Industry



Welcome to high security

Logos representing the high security of the ARC-C by STid Industry

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN). It’s a recognition of our unique know-how, the technological and security expertise that are implemented in your access architecture, whether new or existing.

ARC-C reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).





logos nxp mifare nfc cps3

"Scramble Pad" function for more security

Icon for the scramble pad of the ARCS-C/BT

Both a reader and a tactile keypad, it allows user identification by combining the reading of an RFID card with the input of a personal keypad code. The same reader can also operate in multiple mode. It authorizes, for example, the reading of cards for personnel and the entry of codes for visitors or temporary workers.



Picture of a lady using the scramble pad of the ARCS-C/BT

bloc transparent 600x415px

Smart Fonctions
arc multifacteurs x3

picto flèchesScramble Pad: protects access against the fraudulent use of identification codes by the random display of the keys.



picto puzzle logo, instructions, personalized messages, images, or keypad are displayed by a simple touch wake-up of the screen.



picto mainAdvanced function buttons: using the OSDP™ and SSCP® protocol: alarm activation, time attendance...



picto clocheDoorbell: tactile button used to activate a doorbell via the relay built into the reader.

Logo of SECARD for the ARC-C by STid Industry

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SECARD tools compatible with the ARC-C by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp for ARC C by STid Industry

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 et V2

logo sscp for ARC-C by STid Industry

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.



Picture showing the self-protection of the ARC-C by STid Industry

Create your own upgradable configuration

The Architect® series is intuitive and dynamic, and consists of 6 interchangeable modules that can easily be connected to a common smart RFID core.

This easy and cost saving modular approach allows autonomy on the security access management.



STid Schema ARC evolutivite BT US

arc modularity video
Learn more about
Architect®Series modularity

Let your imagination flow

A signature reflects personal style choices. The design of Architect® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

A spectacular experience

Picture for the spectacular experience of the ARC-C by STid Industry

"Skin effect" new customization technology

  • Picture of an ARC-C from the front side with a color skin
  • Picture of an ARC-C from the front side with a brow hood skin
  • Picture of an ARC C from the front side with a red marble skin
  • Picture of an ARC C from the front side with a grey hood skin
  • Picture of an ARC-C from the front side with a reptile skin
  • Picture of an ARC-C from the front side with a neutral hood skin
  • Picture of an ARC-C from the front side with a joker skin
  • Picture of an ARC-C from the front side with the USA flag skin
  • Picture of an ARC-C from the front side with a military skin
  • Picture of an ARC-C from the front side with a skull skin
  • Picture of an ARC-C from the front side with a black dotes skin
  • Picture of an ARC-C from the front side with a green flames skin
  • Picture of an ARC-C from the front side with a graph skin
  • Picture of an ARC-C from the front side with a water skin
  • Picture of an ARC-C from the front side with a baroque skin

Download the "Skin effect" catalog

Data sheet

  • Frequency
    Frequency: 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass® (CSN only), iCLASS™ cards (CSN only)*, STid Mobile ID® (NFC virtual card), Apple Wallet (NFC Access virtual credential) & Orange Pack ID
  • Functions
    Functions: CSN read-only, secure (file, sector) and secure protocol (Secure Plus) / Controlled by protocol (read/write)
  • Interfaces
    Interfaces: TTL Data Clock (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) and RS232 output with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
  • Reading distances
    Reading distances: Up to 4 cm / 1.57’’ with a MIFARE® DESFire® EV2 card
  • Power supply
    Power supply: 7 VDC to 28 VDC / Consumption: 200 mA/12 VDC max
  • Material
    Material: ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Color
    Color: Black or White - Other possibilities for shell customization
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 128 x 80 x 30.5 mm / 5.04’’ x 3.15’’ x 1.2’’
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 4°F to + 158°F
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 5 - 90%

*Our readers can only read the UID/Chip Serial Number. They cannot read secure HID Global’s iCLASS™ cryptographic protections.



Picture of the ARC-C with its dimensions

          CE FCC UL Logos grey 250px

Part numbers



Picto R Read only



CSN TTL Wiegand / Data Clock:

ARC-R31-C/103-xx/y

Secure TTL Wiegand / Data Clock:

ARC-R31-C/PH5-xx/y

Secure / Secure Plus - TTL Wiegand / Data Clock:

ARC-S31-C/PH5-xx/y

Secure - RS232:

ARC-R32-C/PH5-5AB/y

Secure - RS485:

ARC-R33-C/PH5-7AB/y

Secure / EasySecure decoder - RS485:

ARC-R33-C/PH5-7AA/y

Secure / Secure Plus - RS485 :

ARC-S33-C/PH5-7AB/y

Secure / Secure Plus / EasySecure decoder - RS485:

ARC-S33-C/PH5-7AA/y





picto RW Controlled by protocol



Secure - RS232:

ARC-W32-C/PH5-5AA/y

Secure - RS485:

ARC-W33-C/PH5-7AA/y

Secure SSCP2 compliant CSPN - RS485:

ARC-W33-C/PH5-7AD/y

CSN OSDPTM - RS485:

ARC-W33-C/103-7OS/y

Secure OSDPTM - RS485:

ARC-W33-C/PH5-7OS/y

y: color casing (1: black - 2: white)
