CCT - 13.56 MHz ISO cards

CCT - 13.56 MHz ISO cards

The RFID 13,56 MHz ISO cards (ISO7816 format) are well designed for all your access control and high security identification applications. Several chip technologies, with or without magnetic stripe, are available: MIFARE® Ultralight® & Ultralight® C, Classic EV1, Plus®, DESFire® EV2, EV3 & 256 / ICODE / LEGIC®, etc.

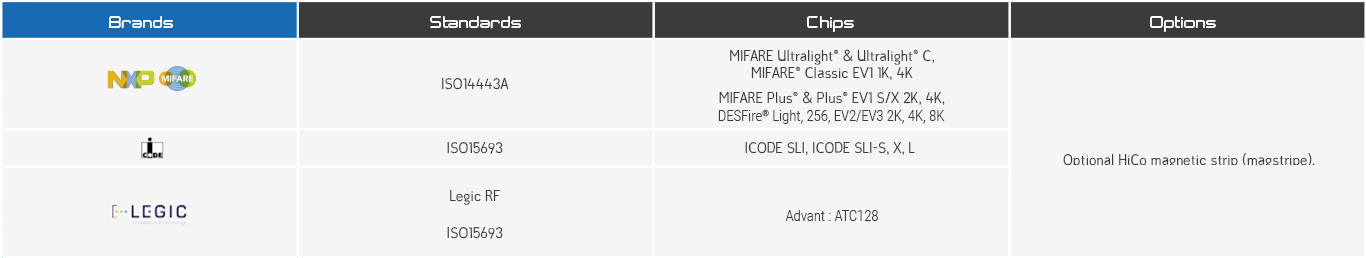

Technologies available

CCT Badges ISO 13 56 MHz en

*Contact us if you would like to order another technology

Let your imagination flow

STid Tag Service creates added value in your contactless identification applications by visual and technological customization of your RFID identification tags. STid can meet all your requirements thanks to its tailor-made customization service. Our processes and equipment offer you bespoke card production, with fast response times and high quality customization.

Create your own corporate card

  • Impression quadrichromie (jusqu’à 3600 dpi)Full color printing (up to 3 600 dpi)
    + variable data: surname, first name, job title, ID photo, etc.

  • Impression monochromeMonochrome printing

  • Impression numérotation séquentielleSequential numbering printing

  • badges code barreBarcode printing

ID encodage2

Customized electrical encoding

The encoding of programmable badges makes it easier to implement your access control system.

  • Programming – Sequential or physical numbering
  • Magnetic stripe configuration
  • Excel table of equivalence


enveloppe icon

Additional services

  • Writing of letters, matching, mail merge

  • Specific packaging (boxes, wrappings, etc.)

Security customization options

Multiple accessories are available:

  • Spacers / Flexible and rigid badge holders
  • Lanyards Cords
  • Clips and straps

See all our accessories

accessoire badge2 480px

Datasheet

  • Frequency
    Frequency: 13.56 MHz
  • Material
    Material: PVC
  • Color
    Color: White - Customizable
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 85,60 x 53,98 mm / 3.35'' x 2.09''



Plans badgesCCT

Part numbers

 logo nxp mifare ref



MIFARE Ultralight® chip:

CCTW310

MIFARE Ultralight® C chip:



CCTW510

MIFARE® Classic EV1 1K / UID 4 bytes chip:

CCTW010

MIFARE® Classic EV1 1K / UID 4 bytes chip + ISO magnetic stripe:

CCTW011

MIFARE® Classic EV1 4K / UID 4 bytes chip:

CCTW170

MIFARE® Classic EV1 4K / UID 4 bytes chip + ISO magnetic stripe:



CCTW171

MIFARE Plus® EV1 2K:

CCTW790

MIFARE Plus® S 4K / UID 4 bytes chip:

CCTW430

MIFARE Plus® X 4K / UID 7 bytes chip:



CCTW470

MIFARE® DESFire® Light:

CCTW780

MIFARE® DESFire® Light + ISO magnetic stripe:

CCTW781

MIFARE® DESFire® 256 chip:

CCTW660

MIFARE® DESFire® 256 chip + ISO magnetic stripe:

CCTW661

MIFARE® DESFire® EV2 2K chip:

CCTW670

MIFARE® DESFire® EV2 2K chip + ISO magnetic stripe:

CCTW671

MIFARE® DESFire® EV2 4K chip:

CCTW680

MIFARE® DESFire® EV2 4K chip + ISO magnetic stripe:

CCTW681

MIFARE® DESFire® EV2 8K chip:

CCTW690

MIFARE® DESFire® EV2 8K chip + ISO magnetic stripe:

CCTW691

MIFARE® DESFire® EV3 2K chip:

CCTW870

MIFARE® DESFire® EV3 2K chip + ISO magnetic stripe:

CCTW871

MIFARE® DESFire® EV3 4K chip:

CCTW880

MIFARE® DESFire® EV3 4K chip + ISO magnetic stripe:

CCTW881

MIFARE® DESFire® EV3 8K chip:

CCTW890

MIFARE® DESFire® EV3 8K chip + ISO magnetic stripe:

CCTW891



logo icode



I.Code Sli X chip - ISO15693:

CCTW250



LEGIC logo ref2



LEGIC® Advant ATC128 chip - ISO15693:

CCTW550
