PCG - 13.56 MHz graphic key holders

The RFID 13.56 MHz graphic key holders are well designed for all your access control and high security identification applications. Several chip technologies are available: MIFARE^® Classic EV1 et DESFire^® EV2 & EV3. With a compact and extremely rugged shell, the PCG will take you through the harshest of environments. Its contemporary design makes it easy to attach a key, ring or card lanyard.

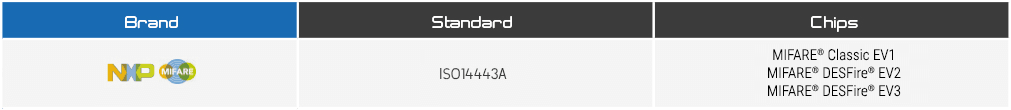

Technologies available

*Contact us if you would like to order another technology

Let your imagination flow

STid Tag Service creates added value in your contactless identification applications by visual and technological customization of your RFID identification tags. STid can meet all your requirements thanks to its tailor-made customization service. Our processes and equipment offer you bespoke card production, with fast response times and high quality customization.

Customized electrical encoding

Express services

Additional services

The encoding of programmable badges makes it easier to implement your access control system:

Programming – Sequential or physical numbering 13.56 MHz
Excel table of equivalence

STid offers a 1 to 2 weeks* express customization service:

Laser marking of a logo
Physical number printing
Logical number printing
Programming - Numbering

Writing of letters, matching, mail merge
Specific packaging (boxes, wrappings, etc.)

Customized electrical encoding

The encoding of programmable badges makes it easier to implement your access control system:

Programming – Sequential or physical numbering 13.56 MHz
Excel table of equivalence

Express services

STid offers a 1 to 2 weeks* express customization service:

Laser marking of a logo
Physical number printing
Logical number printing
Programming - Numbering

Additional services

Writing of letters, matching, mail merge

Specific packaging (boxes, wrappings, etc.)

*Only available on standard black version.

Data sheet

Frequency: 13.56 MHz
Standards: ISO14443A
Material: Polyamide 6
Color: Black, red, blue, green, yellow, white, grey - Several customization possibilities

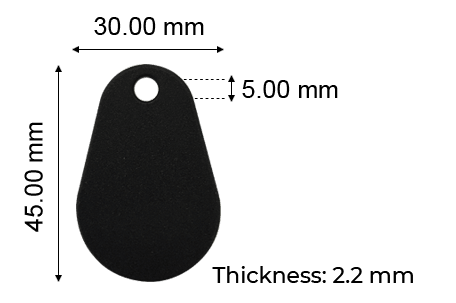

Dimensions (h x w x d): 45 x 30 x 2.2 mm / 1.77'' x 1.18'' x 0.08'' (+/- 0.2 mm)
Operating temperatures: - 25°C to + 50°C / - 13°F to + 122°F
Resistance: Shock, dust and water resistant

Part numbers


MIFARE^® Classic EV1 1K:	PCGW01-y
MIFARE^® Classic EV1 4K:	PCGW17-y
MIFARE^® DESFire^® EV2 2K:	PCGW67-y
MIFARE^® DESFire^® EV2 4K:	PCGW68-y
MIFARE^® DESFire^® EV2 8K:	PCGW69-y
MIFARE^® DESFire^® EV3 2K:	PCGW87-y
MIFARE^® DESFire^® EV3 4K:	PCGW88-y
MIFARE^® DESFire^® EV3 8K:	PCGW89-y
	y: casing color (1: black - 2: red - 3: blue - 5: green - 6: yellow - 7: white - 8: grey)
