ARC-D - 13.56 MHz DESFire® EV3 biometric readers

By developing the Architect^® innovative readers, STid has created the perfect blend of high security and scalability. The ARC-D is a secure card reader, combining RFID technologies and biometrics module of digital fingerprints.

The most awarded access control reader around the world

The perfect blend of

high security and scalability

The perfect blend of high security and scalability

Welcome to high security

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN). It’s a recognition of our unique know-how, the technological and security expertise that are implemented in your access architecture, whether new or existing.

ARC-D reader uses the latest MIFARE^® contactless chip technologies with new data security mechanisms. All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended by official data security agencies (such as the French national agency ANSSI).

Benefits

100% local sandboxed programming
Autonomous management for securely programming RFID and Bluetooth^® user cards
Configuration and reconfiguration of readers
Protection and confidentiality of user cards and the master card
Plug & Play tool
Fully compatible with AGENT, CIMS and STITCH cards
Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

securely program user RFID and virtual cards,
create master physical or virtual badges for programming readers,
manage keys and security configurations.

See flyer

Benefits

100% local sandboxed programming
Autonomous management for securely programming RFID and Bluetooth^® user cards
Configuration and reconfiguration of readers
Protection and confidentiality of user cards and the master card
Plug & Play tool
Fully compatible with AGENT, CIMS and STITCH cards
Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

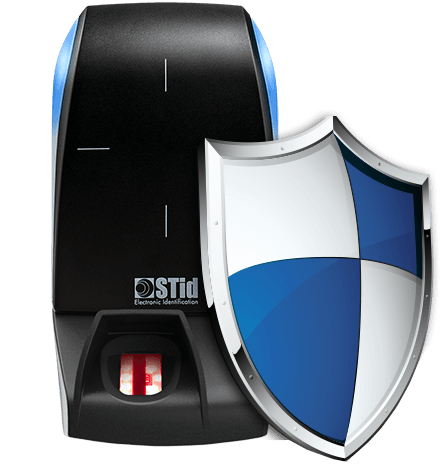

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

Create your own upgradable configuration

The Architect^® series is intuitive and dynamic, and consists of 6 interchangeable modules that can easily be connected to a common smart RFID core.

This easy and cost saving modular approach allows autonomy on the security access management.

Learn more about
Architect^®Series modularity

Let your imagination flow

A signature reflects personal style choices. The design of Architect^® readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

Data sheet

Frequency: 13.56 MHz
Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
Chip: MIFARE® Classic & Classic EV1, MIFARE Plus® & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 & EV3, STid Mobile ID® (NFC virtual card), Apple Wallet (NFC Access virtual credential)
Functions: Read only: CSN and secure (file, sector) / Controlled by protocol (read-write)
Interfaces: TTL Clock&Data (ISO2) or Wiegand output (encrypted option - S31) / RS232 & RS485 outputs (encrypted option - S33) with SSCP® v1 and v2 secure communication protocols, OSDP™ v1 (plain) and v2 (Secure Chanel Protocol)
Reading distances: 0 - 8 cm
Power supply: 7 VDC to 28 VDC / Consumption: 280 mA/12 VDC max
Material: ABS-PC UL-V0
Color: Black - Many cover customization options
Dimensions (h x w x d): 148.6 x 80 x 71.3 mm / 5.85’’ x 3.14’’ x 2.8’’
Operating temperatures: -10°C / +50°C
Protection: Accelerometer-based tamper detection system
Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 - 95%

*Our readers can only read the UID/Chip Serial Number. They cannot read secure HID Global’s iCLASS™ cryptographic protections.

Part numbers

Read only
Secure- TTL :	ARC-R31-D/PH5-xx/1
Secure / Secure Plus - TTL :	ARC-S31-D/PH5-xx/1
Secure - RS485:	ARC-R33-D/PH5-7AB/1
Secure / EasySecure interface - RS485:	ARC-R33-D/PH5-7AA/1
Secure / Secure Plus - RS485:	ARC-S33-D/PH5-7AB/1
Secure / Secure Plus / EasySecure interface - RS485:	ARC-S33-D/PH5-7AA/1
Controlled by protocol
Secure SSCP^® v1 - RS485:	ARC-W33-D/PH5-7AA/1
Secure SSCP^® v2 - RS485:	ARC-W33-D/PH5-7AD/1
Secure OSDP™ v1 & v2 - RS485:	ARC-W33-D/PH5-7OS/1
