The Architect® One is the most compact secure RFID MIFARE® DESFire® EV3 card reader ever. This mullion reader is well designed for installation in small spaces: narrow flushbox or door frame mounting…

The most awarded access control reader around the world bandeau logo Trophees STid 2017 V2

Logo of Architect One for the ARC1S/BT

The concentrate of our most ingenious ideas

  • Picture of a black ARC1S/BT of STid Industry from the front
  • Picture of a black ARC1S/BT of STid Industry from the front version 2
  • Picture of a black ARC1S/BT of STid Industry from the right side
  • Picture of a black ARC1S/BT of STid Industry from complete right side
  • Picture of a black ARC1S/BT of STid Industry from the back
  • Picture of a white ARC1S/BT of STid Industry from the front
  • Picture of a black ARC1S/BT of STid Industry from the complete left side



Easy to install

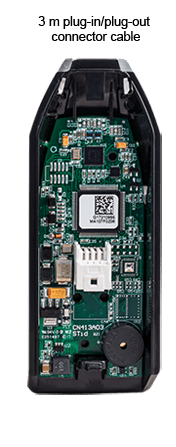

arc one versions 3m US





The Architect® One is a mullion RFID reader specially designed for installation in small spaces, for example on door frames or narrow flushbox mounting.

Its small size and intelligent design make it easy to incorporate into any installation environment with no spacer required (included on metal).

The plug-in/plug-out connector cable and the round mounting holes make the installation easier.

Download the installation note



Picture of a lady using the ARC One by STid Industry

Welcome to high security

Logos representing the high security of the ARC One by STid Industry

STid is the first RFID manufacturer to have received First Level Security Certification (CSPN)*.
It’s a recognition of our unique know-how, the technological and security expertise that are implemented
in your access architecture, whether new or existing.

The Architect® One reader uses the latest MIFARE® contactless chip technologies with new data security mechanisms.

All public encryption algorithms can be used (3DES, AES, RSA, SHA, etc.), which are recommended
by official data security agencies (such as the French national agency ANSSI).



Logos representing of MIFARE and DESfire for the ARC one by STid Industry

Logo secard for the ARC1S/BT

The software tool for full control of your security

The SECard software lets users, installers and integrators easily:

Picture of the SACARD software for the ARC1S/BT by STid Industry

  • securely program user RFID and virtual cards,
  • create master physical or virtual badges for programming readers,
  • manage keys and security configurations.



See the flyer

Benefits

  • 100% local sandboxed programming
  • Autonomous management for securely programming RFID and Bluetooth® user cards
  • Configuration and reconfiguration of readers
  • Protection and confidentiality of user cards and the master card
  • Plug & Play tool
  • Fully compatible with AGENT, CIMS and STITCH cards
  • Complies with General Data Protection Regulation no. 2016/679 and Standard EN16571

logo sia osdp

Reader are compatible with the communication protocol SIA Open Supervised Device Protocol - OSDP™ V1 et V2.

logo sscp

Readers are compatible with the latest generation of open protocol SSCP (STid Secure Common Protocol). This protocol recommended by ANSSI uses data encryption (AES) and two-way “reader-controller” authentication to ensure security before any communication is allowed between the reader and the management system.

Best market self-protection

The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication keys (patented solution). Unlike the current solutions on the market, the reliability of the accelerometer based technology avoids it being outsmarted.

 ARC1S/BT shield for security

Standing the test of the time

Design to push the boundaries, the Architect® One reader design has been developed to withstand harsh environments, to operate outside (IP65 level) and to offer a high impact resistance (IK10).

Download the resistance reportVideo of the ARC One's crash test

Picture showing the resistance of the ARC One by STid Industry

Let your imagination flow

A signature reflects personal style choices. The design of Architect® One readers is immediately recognizable, with a dynamic and elegant style, featuring clean, pure lines. STid offers a range of customization options to tailor your reader to your corporate identity and integrate it fully into its installation environment.

A spectacular experience

Picture for the spectacular experience of the ARC1S/BT by STid Industry

"Skin effect" new customization technology

  • Picture of an ARC1S/BT by STid Industry with a red marble skin
  • Picture of an ARC1S/BT by STid Industry with a brown wood skin
  • Picture of an ARC1S/BT by STid Industry with a dark grey wood skin
  • Picture of an ARC1S/BT by STid Industry with a light grey wood skin
  • Picture of an ARC1S/BT by STid Industry with a white with black dots skin
  • Picture of an ARC1S/BT by STid Industry with a military skin
  • Picture of an ARC1S/BT by STid Industry with a USA flag skin
  • Picture of an ARC1S/BT by STid Industry with the black and white joker skin
  • Picture of an ARC1S/BT by STid Industry with the reptile skin
  • Picture of an ARC1S/BT by STid Industry with the skull skin
  • Picture of an ARC1S/BT by STid Industry with the pollock skin
  • Picture of an ARC1S/BT by STid Industry with light military skin
  • Picture of an ARC1S/BT by STid Industry with the baroque skin
  • Picture of an ARC1S/BT by STid Industry with green flame skin

  • Picture of an ARC1S/BT by STid Industry with the graffiti skin
  • Picture of an ARC1S/BT by STid Industry with the water skin

Download the "Skin effect" catalog

Data sheet

  • Frequency
    Frequency: 13.56 MHz
  • Standards
    Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
  • Chip
    Chip: MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, SMART MX, PicoPass® (CSN only), iCLASS™ cards (CSN only)*, STid Mobile ID® (NFC virtual card), Apple Wallet (NFC Access virtual credential)
  • Functions
    Functions: CSN, pre-configured (PC2 - Easyline), secure (file, sector) read-only and secure protocol (Secure Plus) / Secure read-write
  • Interfaces
    Interfaces: TTL Clock&Data (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
  • Reading distances
    Reading distances: 0 - 6 cm
  • Power supply
    Power supply: 9 - 15 VDC / Consumption : 130 mA/12 VDC max
  • Material
    Material: ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
  • Color
    Color: Black or White - Many cover customization options
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 110 x 42 x 22 mm / 4.33’’ x 1.65’’ x 0.86’’
  • Operating temperatures
    Operating temperatures: - 30°C to + 70°C / - 22°F to + 158°F
  • Protection
    Protection: reinforced IK10 certified vandal proof structure / Accelerometer-based tamper detection system
  • Resistance
    Resistance: IP65 level (excluding connectors) - Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 - 95%

*Our readers only read the UID/Chip Serial Number. They do not read secure HID Global’s iCLASS™ cryptographic protections.



Picture of the ARC1S/BT with its dimensions

           CE FCC UL Logos grey 250px

Part numbers



Picto R Read Only

CSN TTL Wiegand / Data Clock:

ARC1-R31-X/103-xx/y

CSN + Secure MIFARE® Classic - TTL Wiegand / Data Clock:

ARC1-R31-X/PH1-xx/y

CSN + Secure MIFARE® Classic - RS485:

ARC1-R33-X/PH1-7AB/y

Pre-configured - TTL Wiegand / Data Clock:

ARC1-R31-X/PC1-xx/y

Secure TTL Wiegand / Data Clock:

ARC1-R31-X/PH5-xx/y

Secure / Secure Plus - TTL Wiegand / Data Clock:

ARC1-S31-X/PH5-xx/y

Securise - RS485:

ARC1-R33-X/PH5-7AA/y

Secure / EasySecure decoder - RS485:

ARC1-R33-X/PH5-7AB/y

Secure / Secure Plus - RS485:

ARC1-S33-X/PH5-7AB/y

Secure / Secure Plus / EasySecure decoder - RS485:

ARC1-S33-X/PH5-7AA/y

Secure / EasyRemote decoder - Transparent - RS485:

ARC1-R33-X/PH5-7BB/y

 picto RW Controlled by protocol

Secure - RS485:

ARC1-W33-X/PH5-7AA/y

Secure - RS485 - RemoteSecure decoder:

ARC1-W33-X/PH5-7BB/y

Secure - RS485 - RemoteSecure 4 readers decoder:

ARC1-W33-X/PH5-7BC/y

Secure SSCP2 CSPN compliant - RS485:

ARC1-W33-X/PH5-7AD/y

CSN OSDP - RS485:

ARC1-W33-X/103-7OS/y

Secure OSDP - RS485:

ARC1-W33-X/PH5-7OS/y

X = A - Rugged cable outlet, B - Plug-in/Plug-out connector cable
y: color casing (1: black - 2: white)
