IronTag® 360 - UHF EPC1 Gen2 360° flexible on-metal

Features

Benefits:

First and unique tag 360° on the market
Adaptable to any flexible surfaces
Reading reliability : significantly reduce errors
High resistance in harsh environments

Flexible and multidirectionnal

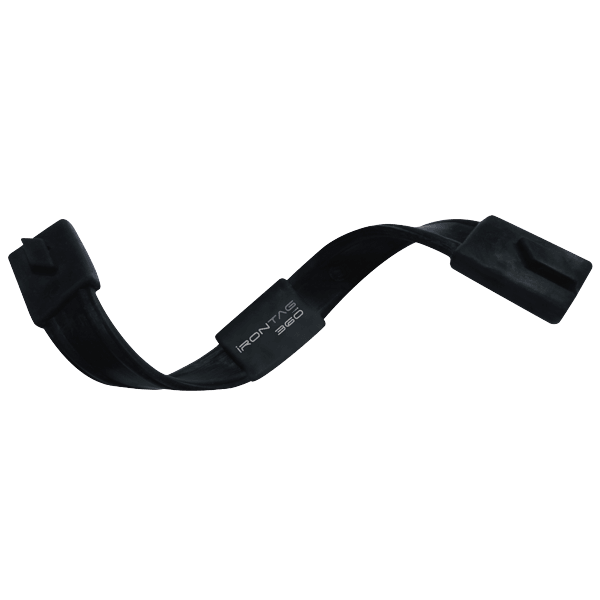

The IronTag^® 360 is a flexible spiral shaped tag, well suited for all rugged and flexible tubular objects (cables, connectors, etc.). Its specific and unique design ensures optimal identification, whatever the position of the asset and the reader.

Best performance-to-size ratio

The STid IronTag^® 360 series provides an unmatched performance-to-size ratio. Both the outstanding reading performances (up to 3 m / 9.8 ft) and the slimline design of tags make possible a lot of identification, tracking and maintenance applications in demanding industries.

Flexible and multidirectionnal

The IronTag^® 360 is a flexible spiral shaped tag, well suited for all rugged and flexible tubular objects (cables, connectors, etc.). Its specific and unique design ensures optimal identification, whatever the position of the asset and the reader.

Best performance-to-size ratio

The STid IronTag^® 360 series provides an unmatched performance-to-size ratio. Both the outstanding reading performances (up to 3 m / 9.8 ft) and the slimline design of tags make possible a lot of identification, tracking and maintenance applications in demanding industries.

Benefits:

First and unique tag 360° on the market
Adaptable to any flexible surfaces
Reading reliability : significantly reduce errors
High resistance in harsh environments

Tags for exacting applications

The IronTag^® 360 is well suited for the most exacting industries.
This new generation of flexible tags is compliant with EPC Class 1 Gen 2 / ISO18000-63 international RFID standard.

The Irontag^® series fits the contactless identification requirements and all the tracking / maintenance (MRO) applications of metal parts:
IT, returnable (gas cylinders, containers, etc.), pipelines, tools, weapons, in-plant vehicles…

Aerospace
Energy / Oil & Gas
Transportation

High resistance in harsh environments

The IronTag^® 360 improves tracking and automated management of manufacturing processes in harsh environments. Dustproof and waterproof protected (IP68), the IronTag^® series is qualified and certified to withstand extreme conditions: heat shocks and fast fluctuations, pressure (>10 bars), liquid (water, detergents, alcohols, oils, petrol, gas, kerosene, skydrol, etc.) and flames.

Data sheet

Frequency: 915 MHz for FCC Part15 (902-928 MHz) and ETSI 302-208 v2.1.1 (915-921 MHz)
Standards: EPC Class 1 GEN 2 / ISO18000-63 / SAE AS5678 / DO-160
Chip: Impinj® Monza® X-2K Dura - EPC 128 bits, user 2176 bits, TID 96 bits
Reading distances: 0 - 3 m / 0 - 9.8 ft on any surface, metal included
Material: Silicone Elastosil LR3170-40 A-B
Color: Black
Dimensions (h x w x d): Length before installation 140 mm / 5.51’’ - Flexible for variable cylindrical surfaces typ. up to 15 to 40 mm / 0.59’’ to 1.57’’ - Weight: 15g
Operating temperatures: -55°C to +110°C / -67°F to +230°F
Storage temperature: -60°C to +150°C / -112°F to +302°F
Resistance: IP68 certified - Dust and water resistant / temperatures, pression, humidity… / High temperature cycles / -55°C (-67°F) according to DO-160 cycle, thermal variations: +5°C/mn (+41°F/mn) / +110°C (+230°F) according to DO-160 cycle, thermal variations: 5°C/mn (+41°F/mn) / Altitude/pressure variations: 0 ft to 25000 ft / 2.6 hPa/s / Excess pressure 15000 ft to 35000 ft in 15 sec / Vibrations: all categories according to DO-160 / SPX902 / Hydrophobic material (humidity, ice, mushrooms, mold, sand, dust, solar radiation resistant) / Salt fog: 5 wt% NaCl, 35°C, RH 100%, 96h / Liquid resistant (DO-160 cat. F): water (F34), hydraulic fluid (H-537, skydrol), oil (O-155) / Frame resistant (UL94-V0 - self-extinguishing)
