The SPECTRE GATE combines the best of RFID technology with a mobile, communicating and smart gate solution. It is designed to meet all specific needs of Industry 4.0.

This connected gate automates logistics tracking and production assets quickly and accurately. It is the perfect fit for industrial applications (identification at factory entrance/exits, flow monitoring, combating FOD and FME, etc.), and supply chain applications (loading/unloading on docks, etc.).

Logo SG 650





La réponse aux applications de traçabilité industrielle et logistique les plus exigeantes

MOBILE | RAPID | HIGH-PERFORMANCE | SCALABLE | ROBUST | INSTINCTIF

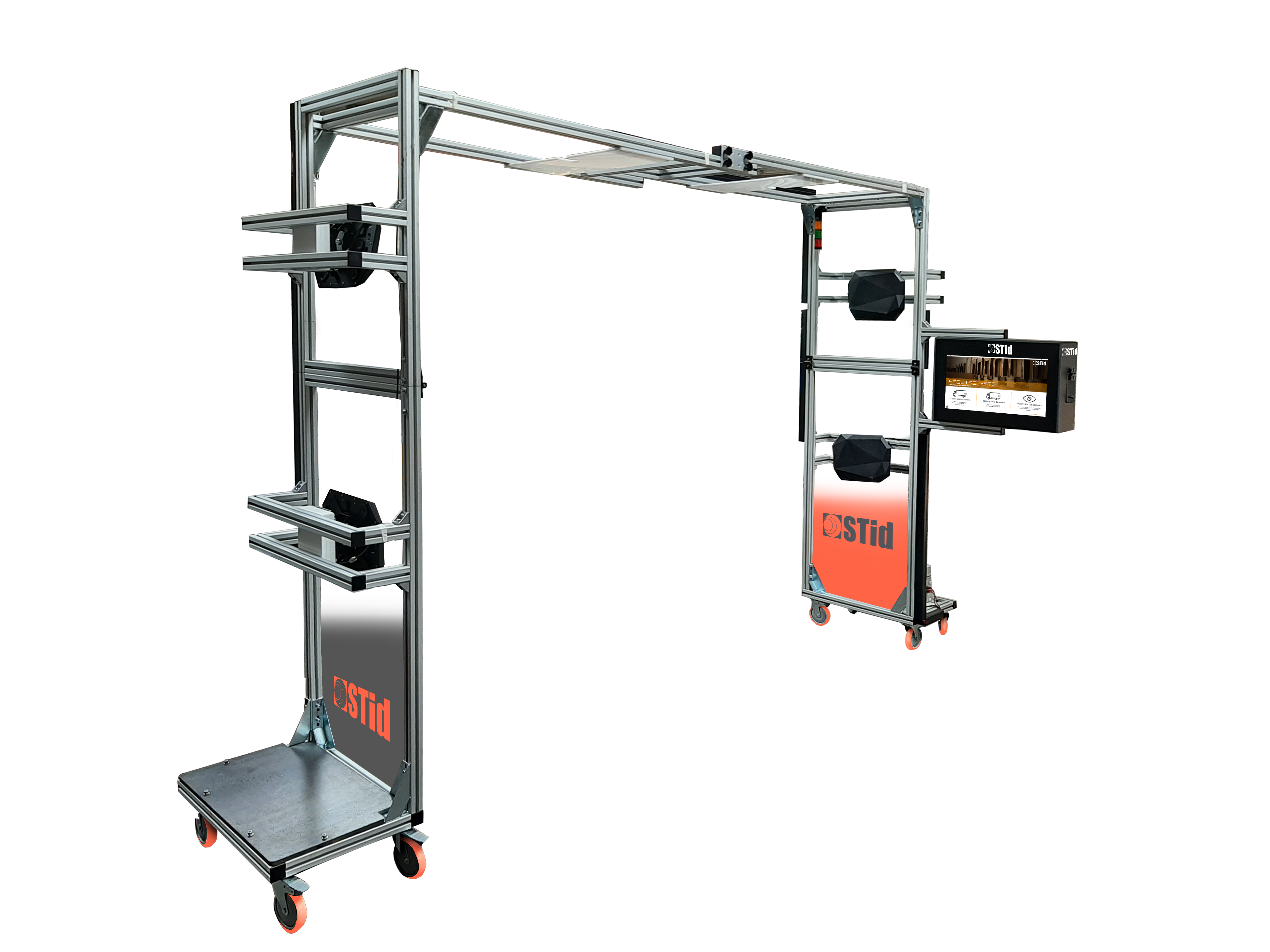

  • SPECTRE GATE Design 1

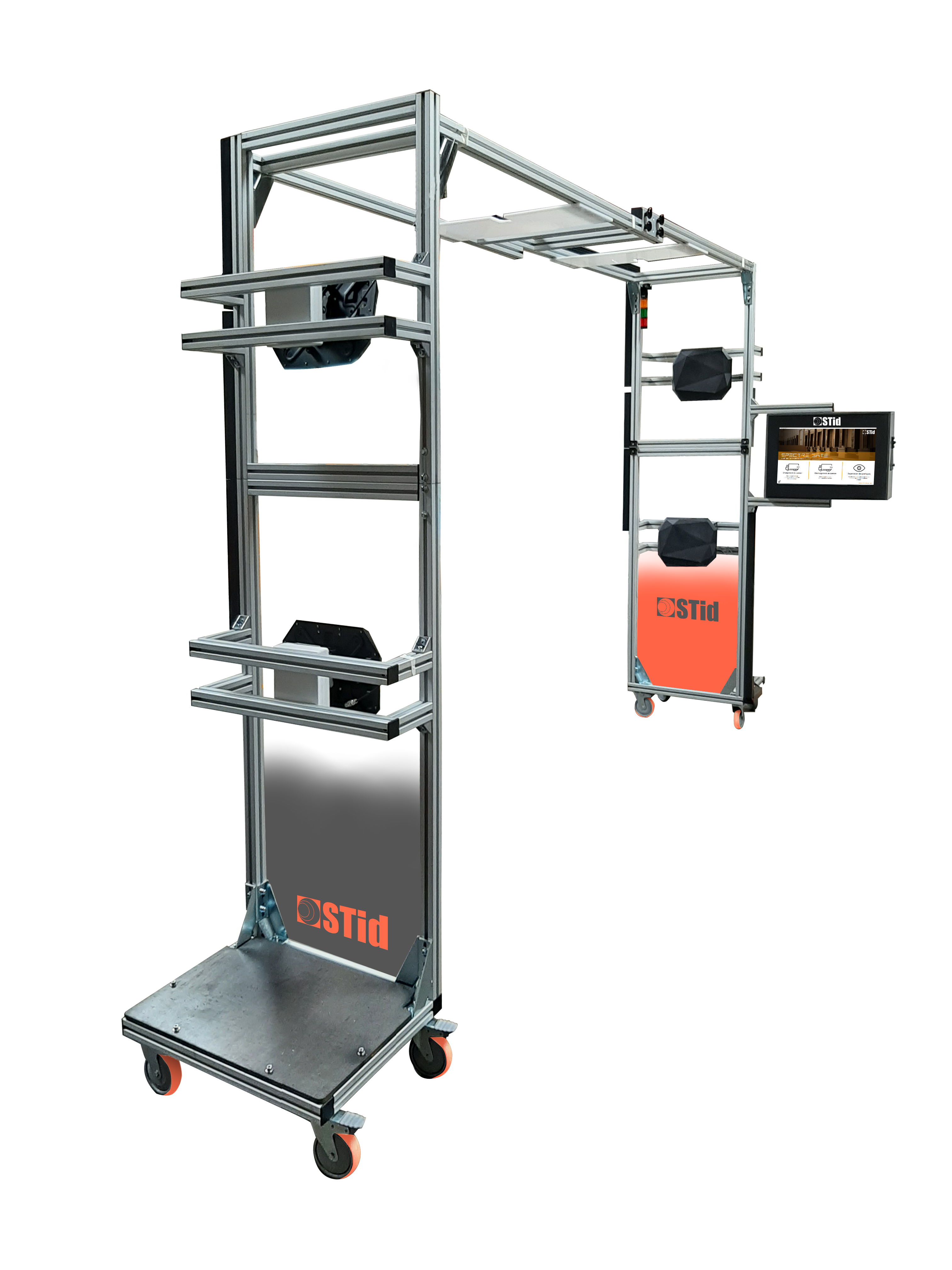

  • SPECTRE GATE Design 3

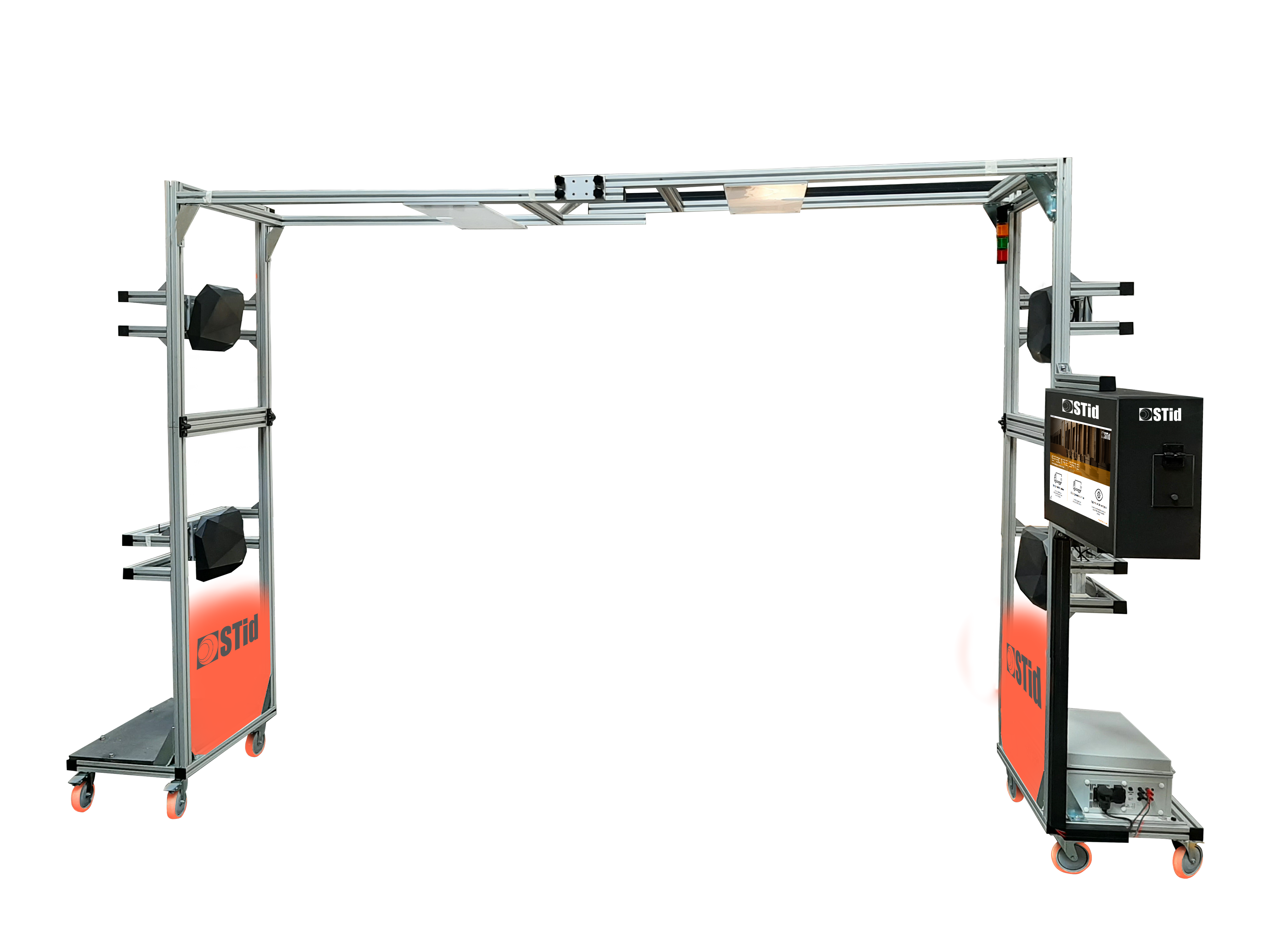

  • SPECTRE GATE Design 2

Logistical & industrial traceability applications

  • Dock loading and unloading management

    quais
  • In/Out factory identification

    Slides 447x300 usine
  • Supply chain supervision flows

    Slide Supply Chain 447x300
  • Tools tracking / Fight against FOD and FME

    Slides FOD 447x300
  • Tests and trials on pilot site (Proof of Concept)

    Slide Proof Of Concept 447x300

picto indus perf

HIGH PERFORMANCE READING

SPECTRE GATE includes the SPECTRE Industry multi-antenna reader.

It offers accurate identification, speed and reliability (reading in excess of 1,200 tags/sec)*.

This unrivalled level of performance makes it the best industrial RFID gate solution for real-time, mass and in-motion identification applications.



picto indus integration

EASY INTEGRATION

SPECTRE GATE includes customizable and fully-functional demo software ideal for pilot-site testing and trials.

The SSCP® protocol which drives the UHF reader, combined with its SDK shorten the development time of custom interfaces. Easy configuration of inputs/outputs (for the use of sensors, light columns, flashing lights etc.) and the use of the SPECTRE antenna’s sound and light indicators simplify the integration and configuration of business applications.



*WARNING, information on speed, performance, distance and reading rate: measured at the center of the antenna, depending on the type of tag, the type of media and its positioning, the number and configuration of the antenna, the temperature, and the supply voltage. Installation conditions and the environment may affect reading speeds, performance, and distances.

Scalable, mobile and autonomous

SPECTRE GATE has a modular structure that can be adapted to the specifics of each site, environment,
and business application.Its compact structure is also foldable to save space and ease transportation.


This gate is mounted on directional wheels with brakes and contains a complete computer cabinet with
wireless network connection.SPECTRE GATE offers mobility within the warehouse or premises.

Its battery operated power cabinet permits up to 2 days of operational time in normal use.

Schéma SG 400x400 EN

logo sscp spac

SPECTRE Gate is compatible with the latest generation of the open SSCP® (STid Secure Common Protocol) protocol.

Simple to integrate, the SSCP® protocol is supported by the European SPAC® organisation and is recommended by ANSSI for its security.

This protocol and its SDK for the Windows-compatible .NET language is sufficiently flexible for the development of personalized interfaces.

Standing the test of time

Its robust structure and unique design are suitable for all industrial and logistical traceability applications in harsh environments (manufacturing workshops, factories, assembly lines, logistical warehouses, unloading docks, etc.

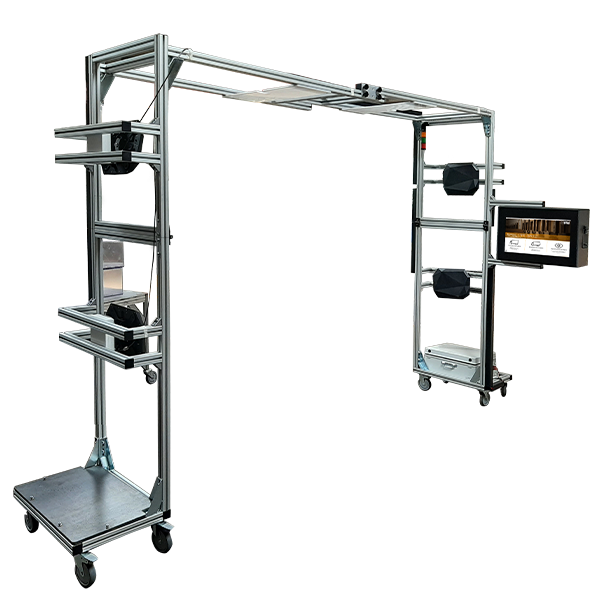

SG 1 3 600x600

Data sheet

  • Frequency
    Frequency: UHF
  • Standards
    Standards: EPC1 Gen 2 / ISO18000-63 - Untraceable - Permalock Block - ATA SPEC 2000-compatible
  • Functions
    Functions: Controlled (read / write) via SSCP
  • Interfaces
    Interfaces: RS232 – RS485 – USB – USB WEDGE – TCP-IP POE
  • Power supply
    Power supply: Tecsup 40 Ah 750Wh (IP66) self-contained energy boxes with 24 VDC and 230 VAC power supply
  • Material
    Material: Bosh aluminum profile 45 x 45 mm (Grey) - Rigid PVC cable duct (Black) - Simopor cabinet (Black)
  • Color
    Color: Grey
  • Dimensions (h x w x d)
    Dimensions (h x w x d): Min size: 2321 x 2600 x 1420,5 cm - Max size: 2321 x 4100 x 1420,5 cm
  • Protection
    Protection: Reinforced structure, high resistance to shocks and vibrations
  • Indicators
    Indicators: Led on reader - Led + buzzer on antenna - Werma light column on gate

WARNING, information on speed, performance, distance and reading rate: measured at the center of the antenna, depending on the type of tag, the type of media and its positioning, the number and configuration of the antenna, the temperature, and the supply voltage. Installation conditions and the environment may affect reading speeds, performance, and distances.

Schéma SG Cote 502

Part numbers



picto RW lecture/écriture Controlled by protocol



    Autonomous mobile gate



SPECTRE GATE – R/W SSCP – TCP-IP PoE -  865-868 MHz:

SPG-W44-A/U04-8AA/3

SPECTRE GATE – R/W SSCP – TCP-IP PoE -  902-928 MHz:

SPG-W54-A/U04-8AA/3



    Caisse de transport (Option)



Wooden transport case – 1623 x 1750 x 850 mm - 4 directional wheels with brakes + 2 handles:

CAISSE-BOIS-PORTIQUE
