The SPECTRE Industry reader (SMI) is designed for your most demanding traceability applications and meets all your needs for the identification and tracking of assets in industrial environments. It makes logistical flows and data collection faster, smoother and more secure.

Offre decouverte produits US

SEE THE STARTER KIT             TAKE ADVANTAGE OF THE OFFER


* Limited Offer: 1 SPECTRE Starter Kit per organization, valid until December 31, 2021. Cannot be combined with any other current promotional offers. The Starter Kit includes: an SMI or SME reader, a SPECTRE antenna, an accessory kit, and a UHF tag kit.
** Return with credit or refund based on 95% of the initial value ordered. The return must be made within 45 days of the delivery date and in its original and complete condition (packaging, accessories, instructions). In this context, your responsibility is in effect: any damage suffered by the product on this occasion may be such as to negate the right of return. Return costs are your responsibility.

Logo SMI 650





The solution for the most demanding industrial and logistical traceability applications

SMOOTH | RAPID | HIGH-PERFORMANCE | SCALABLE | STEALTH | INSTINCTIVE

  • Spectre slide 600px faceL1

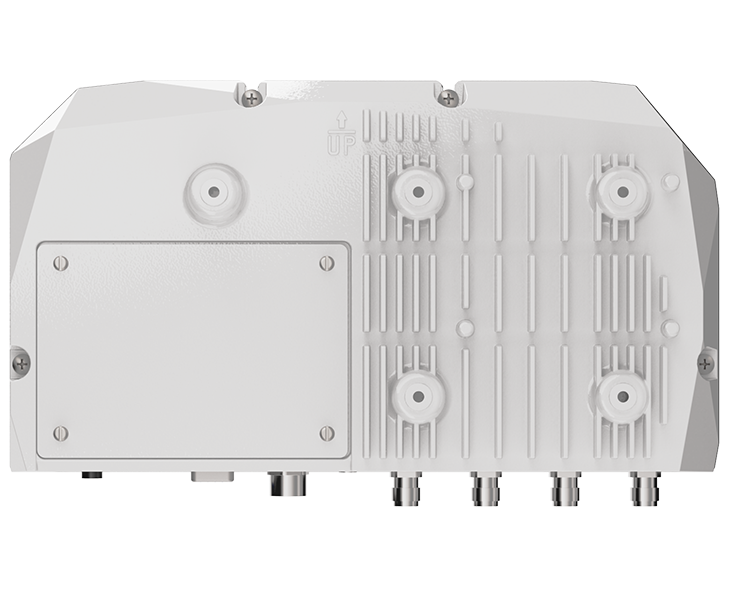

  • Spectre slide 600px faceL2

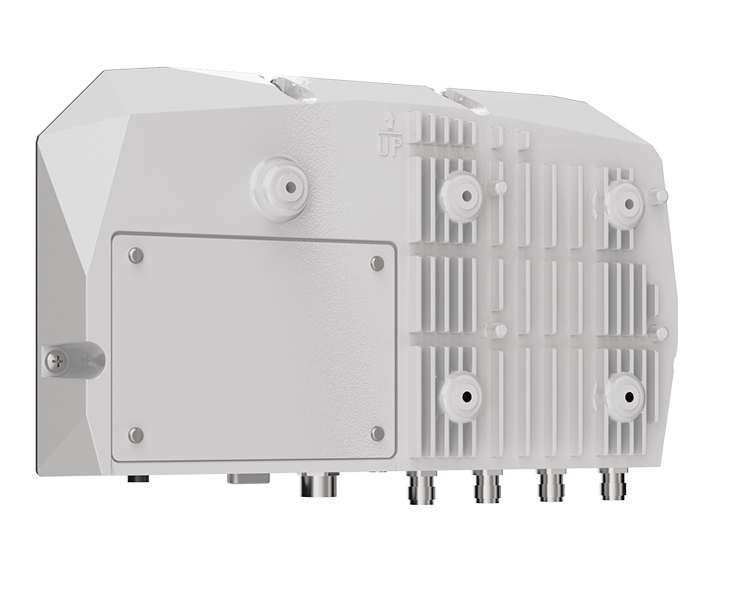

  • Spectre slide 600px faceL3

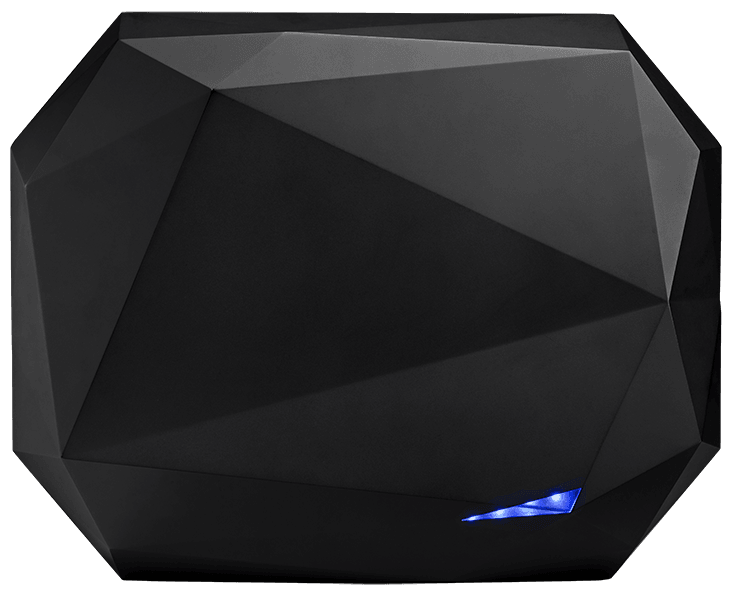

  • Spectre slide face

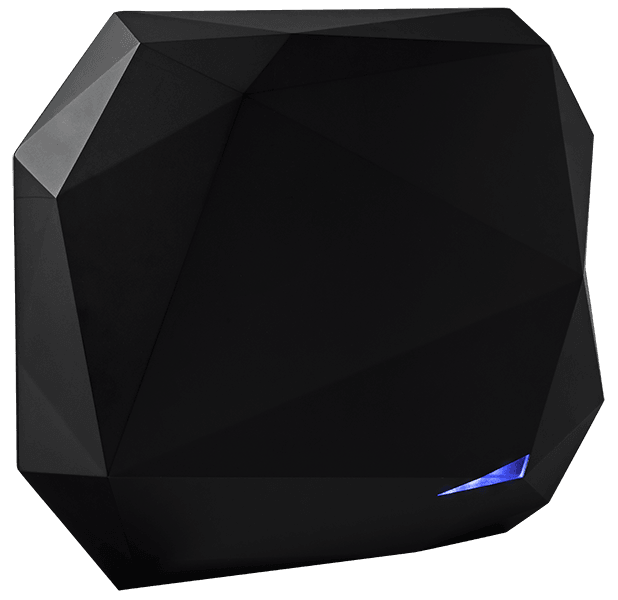

  • Spectre slide gauche

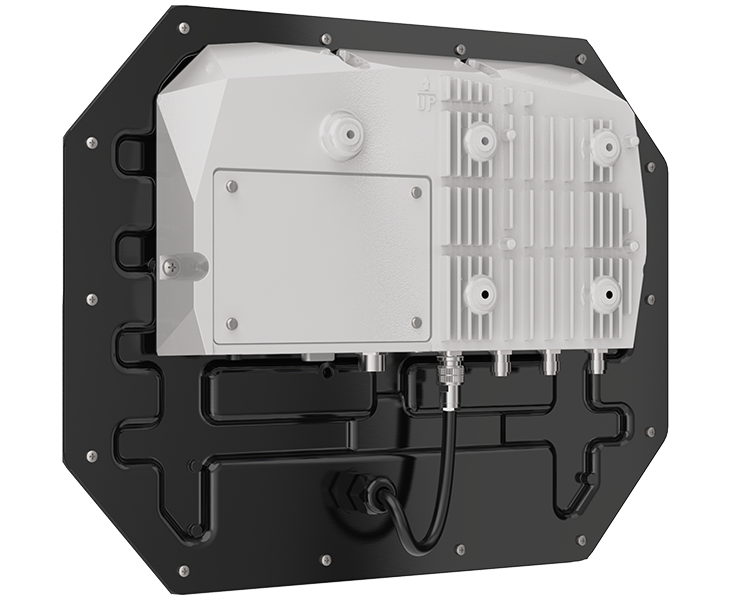

  • Spectre slide 600px face1
  • Spectre slide 600px face2

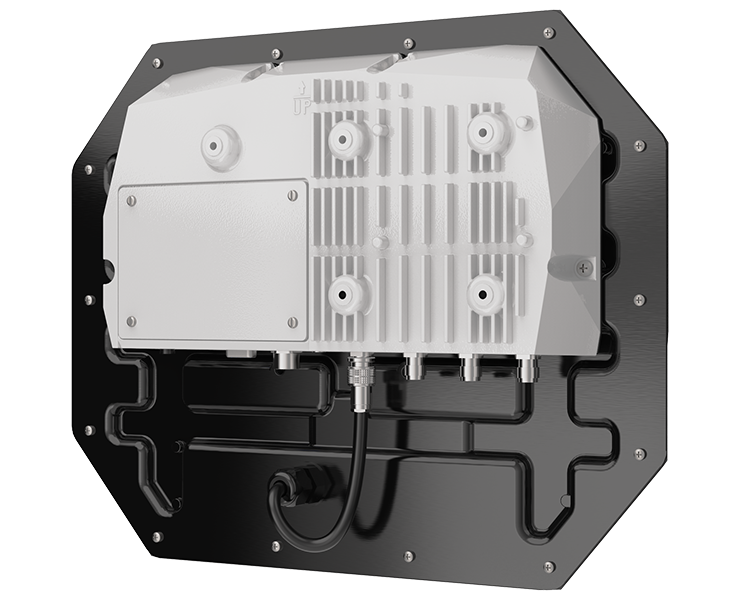

  • Spectre slide 600px face3
  • Spectre slide 600px faceSMI

Logistical & industrial traceability applications

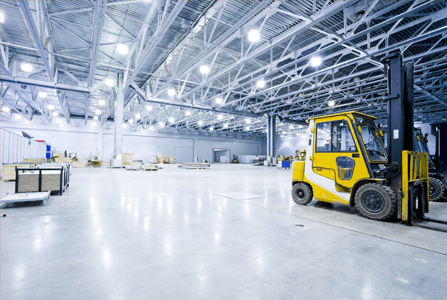

  • Dock loading and unloading management

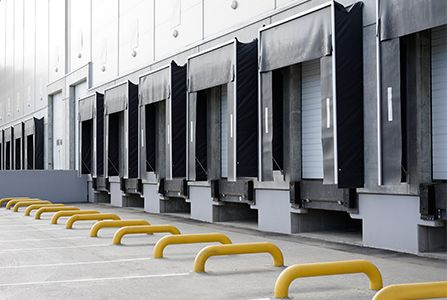

    Picture representing the application in dock loading management of the SPECTRE readers
  • Identification of articles entering and leaving workshops and warehouses

    Picture representing the application in dock loading management of the SPECTRE readers
  • Production plant automation

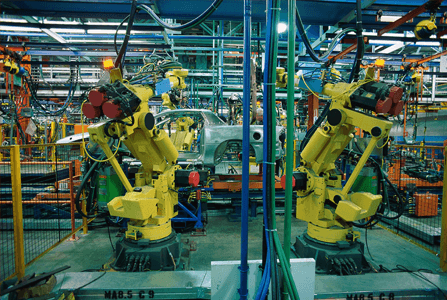

    Picture representing the application for production plant automation of the SPECTRE readers
  • Supervision of production flows

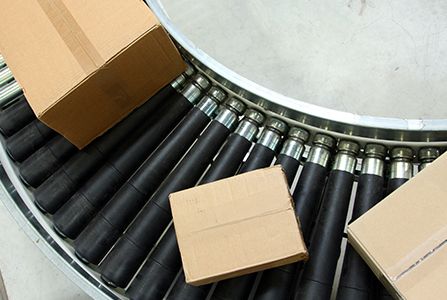

    Picture representing the application in supervision of product flows of the SPECTRE readers

High read performances



Thanks to the 3D ID System technology, the SPECTRE Industry offers a long-range identification capability of up to 14 m / 45.9 ft*.

The SPECTRE Industry offers the fastest and most reliable levels of identification, with read speeds in excess of 1,200 tags/second* and a processing capacity higher than 250 tags/second*, with an anti-collision system.

These performances mean that the SPECTRE Industry is the RFID industrial reader best adapted for reading massive volumes of moving assets.







*CAUTION: information on the read speeds, performances and ranges: measured at the center of the antenna, dependent on the type of tag, the type of support and its position, the number and configuration of the antennas, the temperature and the supply voltage. The installation conditions and the environment impact the read speeds, performances and ranges.

exergueT

Modular and scalable

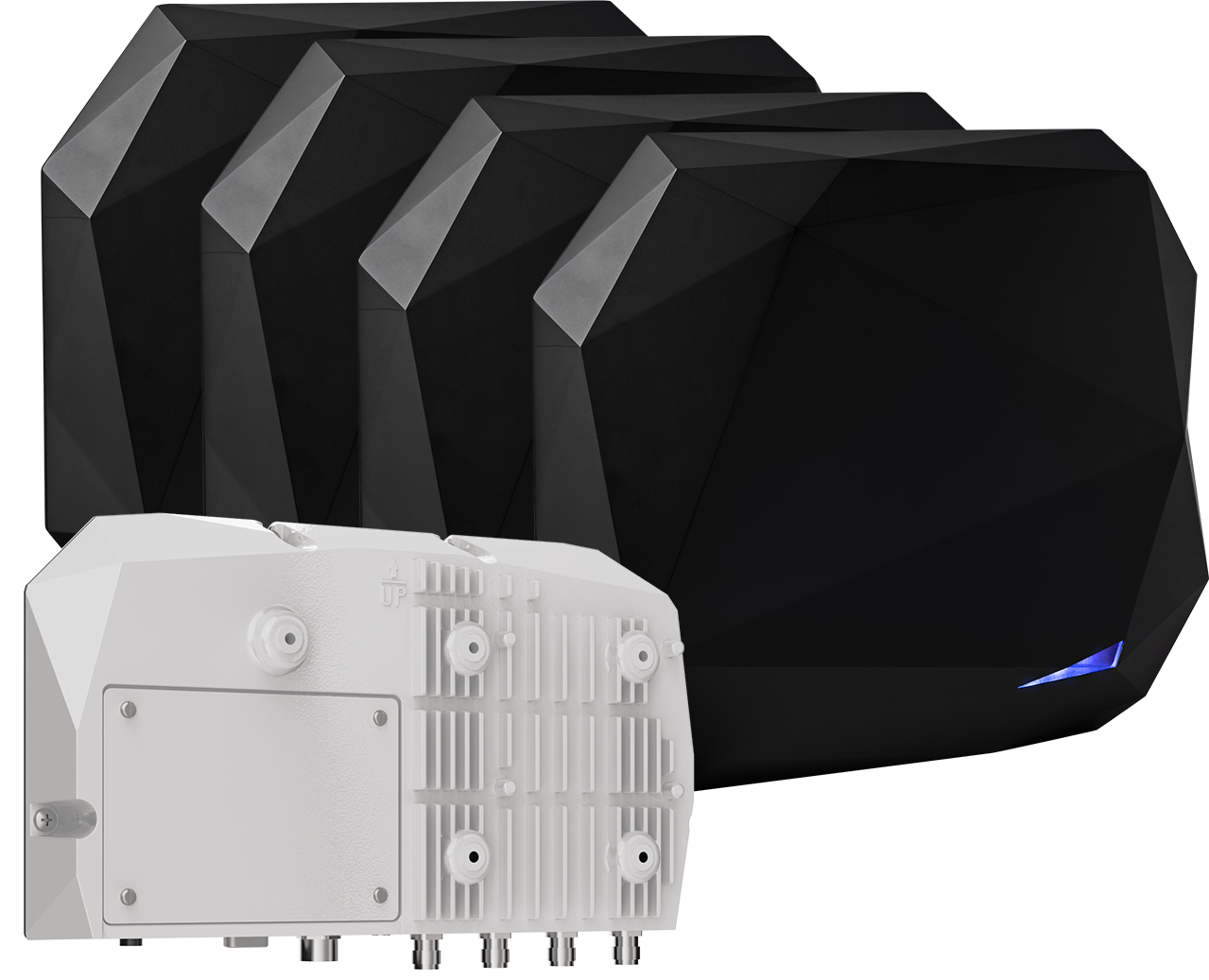

With its 4 remote and independent antennas, the SPECTRE Industry reader can be adapted to meet all the requirements of your current and future projects.

Thanks to its modular design, the SPECTRE Industry reader can be readily adapted to changes in your client applications at a limited cost.

SMIant

Easy integration

The SMI is interoperable with existing industrial infrastructures.

schema interfaces indusSMI US

In addition to the serial interfaces RS232 / RS485 and USB, the Power-over-Ethernet (PoE)* technology enables the reader to be connected directly over the Ethernet to business applications or middleware, without any additional connectors or power supplies.

The reader has four inputs for detection cells, sensors, etc., and four outputs for the use of light columns, flashing lights, remote industrial buzzers, etc. The flexibility of the GPIO simplifies the on-site integration and configuration of client applications (embedded solutions, on gates, conveyors or trolleys, in tunnels, etc.).

schema SMI

*Requires a PoE switch or injector

The + SPECTRE

  • Configurable sound and light indicator, directly integrated in the SPECTRE antenna (registered technology).
  • Front USB with native keypad emulation to automatically bring up EPCs on any text editor.

logo sscp spac

SPECTRE Industry is compatible with the latest generation of the open SSCP® (STid Secure Common Protocol) protocol.

Simple to integrate, the SSCP® protocol is supported by the European SPAC® organisation and is recommended by ANSSI for its security.

This protocol and its SDK for the Windows-compatible .NET language is sufficiently flexible for the development of personalized interfaces.

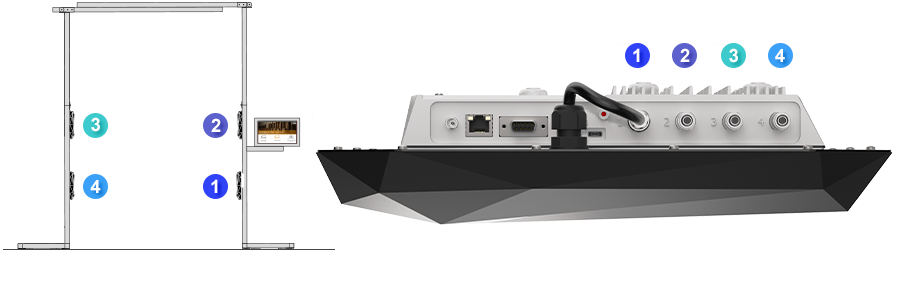

Quick and easy installation

installationSMI indus

The SPECTRE Industry reader allows for numerous installation configurations thanks to its standard VESA 75x75 wall and mast mountings.

The Smart Mounting system can be used to mount the antenna on the reader, making the SPECTRE the most flexible and modular reader on the market.

The extra-flexible coaxial cables, available in lengths of 1.5, 3, 9 and 12 meters, and the possibility to serial-connect the cables, offer plenty of scope for different on-site installations.

The complete range of accessories (cables and connectors) for the power supply and communications enables Plug&play wiring in both the test phase and on customer sites.

Benefits

  • Modularity of the reader
  • Flexible and connectable cable in series
    up to 12 m / 39.4 ft
  • Optimized reader-antenna mountings
  • Saving space

Standing the test of time

With its IK10-certified reinforced anti-shock, IP53 protected level and MIL–STD-810G-compliant anti-vibration structure, the SPECTRE Industry is the most robust UHF reader in its category.

It is designed for all industrial tracking applications in harsh environments, such as production workshops, factories, assembly lines, logistics warehouses, loading docks...

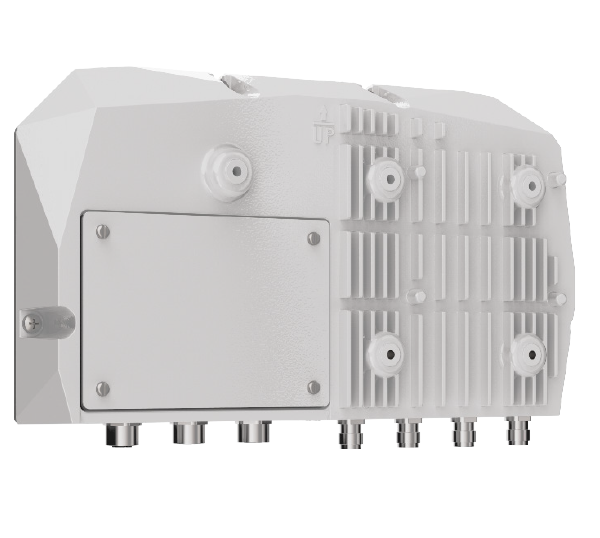

Spectre SMI resistance web

IronTag® compatibility

SPECTRE Industry is compatible with the IronTag® range of hardened passive tags in order to identify all types of critical assets, even in hostile environments.

Iron Tag logo



aero small

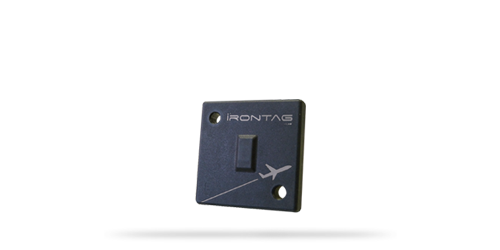

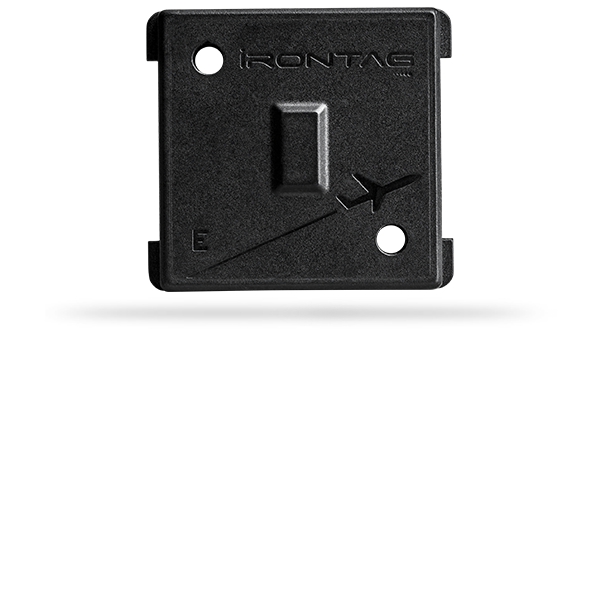

IronTag® Aero

More information

Flex small

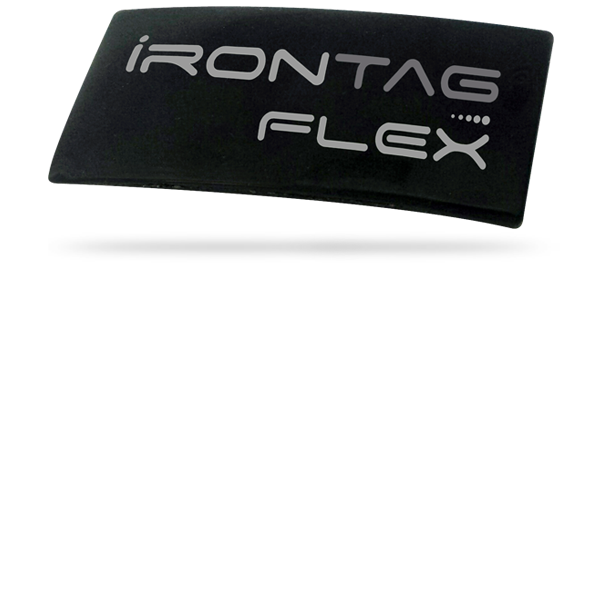

IronTag® Flex

More information

Tags durcis 360

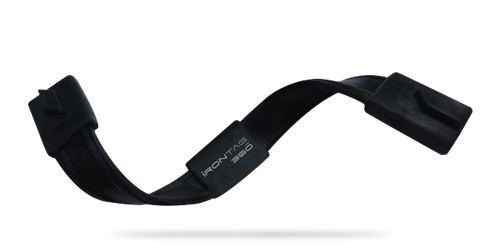

IronTag® 360°

More information

Data sheet

  • Frequency
    Frequency: UHF
  • Standards
    Standards: EPC1 Gen 2 / ISO18000-63 - Untraceable - Permalock Block - ATA SPEC 2000-compatible
  • Functions
    Functions: Controlled (read / write) via SSCP
  • Interfaces
    Interfaces: RS232 / RS485 / USB / TCP-IP POE
  • Reading distances
    Reading distances: 3D ID System technology – Read speed higher than 1,200 tags/second* - Capable of processing more than 250 tags/second* with an anti-collision system - Read range of up to 14 m / 45.9 ft* / Maximum RF power of up to 32 dBm
  • Power supply
    Power supply: 12 VDC to 30 VDC (typically 24 VDC) or PoE - Optimized consumption: 24 VDC: 0.6 A
  • Material
    Material: Antenna: ABS and polycarbonate (ABS-PC) / Reader: aluminium
  • Color
    Color: Black (antenna) - White (reader)

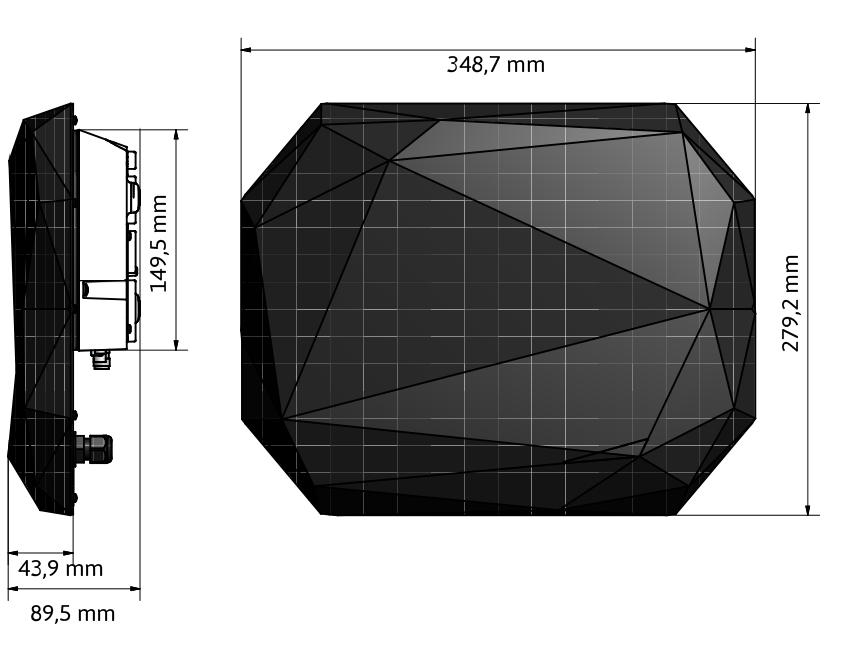

  • Dimensions (h x w x d)
    Dimensions (h x w x d): Reader only (SMI): 271.7 x 149.9 x 44.50 mm / 10.7’’ x 5.9’’ x 1.7’’, excluding connectors (general tolerance as per ISO NFT 58-000) - 1.3 kg / Reader + antenna (SLI): 348.7 x 279.2 x 89.48 mm / 13.7’’ x 11’’ x 3.5’’ (general tolerance as per ISO NFT 58-000) - 2.65 kg
  • Operating temperatures
    Operating temperatures: -25°C to + 60°C / - 13°F to + 140°F
  • Protection
    Protection: Reinforced structure, high resistance to shocks and vibrations (IK10-certified, IEC 60068-2-6 and MIL – STD-810G-compliant)
  • Resistance
    Resistance: Reader only (SMI): IP53 protected level / IP66-certified antenna
  • Indicators
    Indicators: Led on reader - Led + buzzer on antenna

*CAUTION: information on the read speeds, performances and ranges: measured at the center of the antenna, dependent on the type of tag, the type of support and its position, the number and configuration of the antennas, the temperature and the supply voltage. The installation conditions and the environment impact the read speeds, performances and ranges.

Schema Spectre SMI

         CE FCC UL Logos grey 250px

Part numbers



picto RW lecture/écriture Controlled by protocol



Reader only versions:



SPECTRE Industry UHF reader – R/W SSCP® v1 & v2 - TCP-IP PoE - 865-868 MHz:

SMI-W44-A/U04-8AX/2

SPECTRE Industry UHF reader – R/W SSCP® v1 & v2 - TCP-IP PoE - 902-928 MHz:

SMI-W54-A/U04-8AX/2



Reader with mounted antenna:



Reader + SPECTRE Industry UHF antenna – R/W SSCP® v1 & v2 -TCP-IP PoE - 865-868 MHz:

SLI-W44-A/U04-8AX/1

Reader + SPECTRE Industry UHF antenna – R/W SSCP® v1 & v2 -TCP-IP PoE - 902-928 MHz:

SLI-W54-A/U04-8AX/1



Antennas :



SPECTRE UHF antenna + buzzer - 865-868 MHz:

ANT-SPECTRE-C

SPECTRE UHF antenna + buzzer - 902-928 MHz:

ANT-SPECTRE-D



Discover the SPECTRE GATE

The first communicating, mobile* and standalone industrial RFID gate

With its built-in SPECTRE Industry UHF multi-antenna reader, the SPECTRE GATE is designed for mobile use and easy transport, making it the ideal tool for your customer demonstrations, tests and POC (Proof of Concept). With its embedded demonstration software, this smart, all-in-one RFID gate can be used to quickly and simply present all the benefits of an RFID gate logistical traceability solution directly on site.



Logo SG 200 gris allows:

  • Hierarchically organizes the loading order of containers (pallets, rolls, flight cases, etc.).
  • Is totally mobile in the warehouse, thanks to its wheel-mounted mobile structure and self-contained power supply unit.
  • Optimizes structural costs and the cost of customer POC, thanks to its scalable and adjustable architecture.
  • Speeds up logistical flows by avoiding human error and thanks to its high-speed and real-time identification of massive volumes.

More information



*Fixed version also available.
