Nordic ID HH53 - UHF handheld readers

Nordic ID HH53 - UHF handheld readers

Nordic ID HH53 is an all-in-one RFID handheld reader equipped with an Android operating system and a integrated 4.3″ touchscreen. This mobile reader is designed to offer the best  user experience possible. The Android operating system combined with its high level data processing capacity allows the HH53 to embed sophisticated and smoothly running industrial applications. This UHF portable terminal is perfectly suited to all your data collection and on-the-fly identification mobile applications for logistics and industrial assets monitoring (inventory applications, maintenance management (MRO) of critical aircraft parts, ATA SPEC 2000 applications etc.)

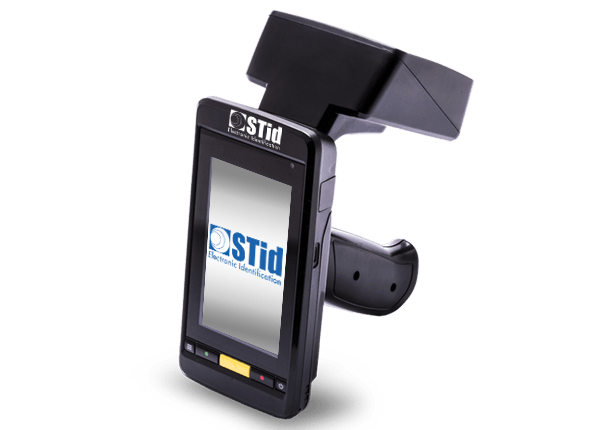

  • Picture of an Nordic ID Medea by STid Industry

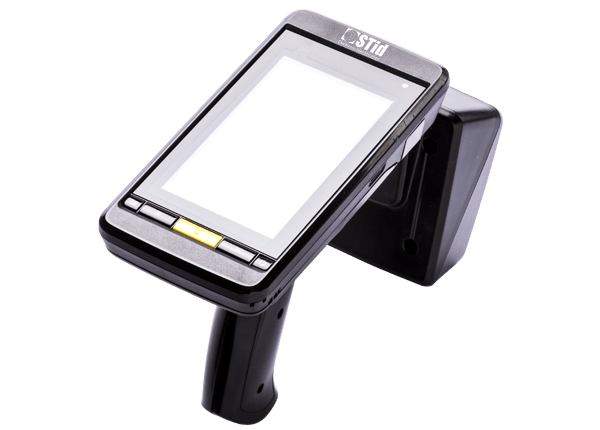

  • Picture of an Nordic ID Medea by STid Industry from the top

Features

Performance O

High performance
identification

The Nordic ID HH53 terminal is designed for long range read write applications (up to 7 m / 22.97 ft) with high speed, easy and selective contactless identification). It can easily read up to 200 tags/second.
It offers many antenna configurations directly controlled by software: linear, circular or proximity.



Design O

A clever blend of design
and ergonomics

Thanks to its optimized grip and use, and a large, high-resolution 4.3"color touch screen, the C-One offers excellent ease-of-use, even in bright sunlight.



Autonomie O

Build
on mobility

A 3500 mAh battery enables stand-alone usage of up to, or greater than, 10 hours working-time thanks to our dedicated power-management (16 hours of intensive use with the optional 7000 mAh battery).

Benefits

  • Large and robust daylight readable
    4.3” touchscreen
  • High processing capability
  • Operates a full working day with
    only one charge
  • Several connectivity options

Sur mesure O

Reading accuracy and reliability

The UHF terminal is designed for fast, accurate and reliable data collection, whether it is a short-range RFID reading or an intensive RFID inventory.



Multi technos O

Upgradable multi-technology terminal

The Nordic ID HH53 Terminal can be combined with an optional module to identify barcodes. It has an adaptive laser to the ranges: standard, long and auto-range.



Robustesse O

Robustness and reliability

It stands out from consumer products through its unflinchingly rugged construction. Built to International Standard IP54, it will withstand multiple falls of 1.50 m / 4.92 ft on to concrete and remain fully operational within a temperature range of -20°C to +55°C / -4°F to +131°F.



Industrial applications

  • Critical asset tracking in aerospace and naval industries

  • Military equipment management and tracking

  • Applications compliant with the ATA SPEC 2000 standard
    (HH53 compatible with the STid ATA Manager mobile software)

  • Supply chain and warehouse management

  • Distribution

 logo IATA Spec2000

Data sheet

  • Frequency
    Frequency: UHF
  • Standards
    Standards: ISO18000-63 / EPC1 Gen 2 - ETSI 865.6 - 867.6 MHz or FCC/IC 902 - 928 MHz / RF power: ERP +33 dBm (2 W) / CE & FCC certifications
  • Chip
    Chip: EPC1 Gen 2
  • Functions
    Functions: Read write
  • Interfaces
    Interfaces: 2D Imager / Dual band WLAN (a/b/g/n) / Bluetooth®
  • Reading distances
    Reading distances: 0 - 7 m / 0 - 22.97 ft - Up to 200 tags/second
  • Power supply
    Power supply: Rechargeable, removable Lithium-Ion battery 3500/7000 mAh, 3.7V Up to 10/16 h in intensive use. Dock station included
  • Color
    Color: Black
  • Dimensions (h x w x d)
    Dimensions (h x w x d): 196 x 83/91 x 21/135 mm / 7.72’’ x 3.27’’/3.58’’ x 0.83’’/5.32’’ - Weight: 550 g including the battery
  • Operating temperatures
    Operating temperatures: -20°C to +55°C / -4°F to + 131°F
  • Protection
    Protection: Multiples drops on 1.5 m / 4.92 ft - ESD contacts: +/- 4kVdc / Air discharge: +/- 8kVdc
  • Resistance
    Resistance: IP54 - Water projection and dust resistant / Humidity: 10 - 95%
  • Processor and memory
    Processor and memory: ARM Cortex-A8 1 GHz / Memory: 512 MB LPDDR2 - RAM 4 GB Flash
  • Operating system
    Operating system: Android
  • Touchscreen
    Touchscreen: 4,3" WVGA capacitive touch screen, 800 x 480 pixels, 262k colors Adjustable LED backlight, Daylight readable (Blanview), Gorilla glass 2

Plans FT MEDEA

Part numbers



HH53 Android UHF handled Terminal + 1D/2D codes + Dock station - 865-868 MHz:

HH53-W4X-A-U04

HH53 - Android UHF handled Terminal + 1D/2D codes + Dock station - 902-928 MHz:

HH53-W5X-A-U04
