SPECTRE ATX4 - UHF ATEX & IECEx certified readers - Up to 4 external antenna(s)

SPECTRE ATX4 - UHF ATEX & IECEx certified readers - Up to 4 external antenna(s)

SPECTRE ATX4 is a fixed multi-antenna UHF reader, ATEX & IECEx certified. It meets the needs of industrial identification and traceability in all explosive atmosphere environments. It speeds up, streamlines, and secures assets flow and data collection.

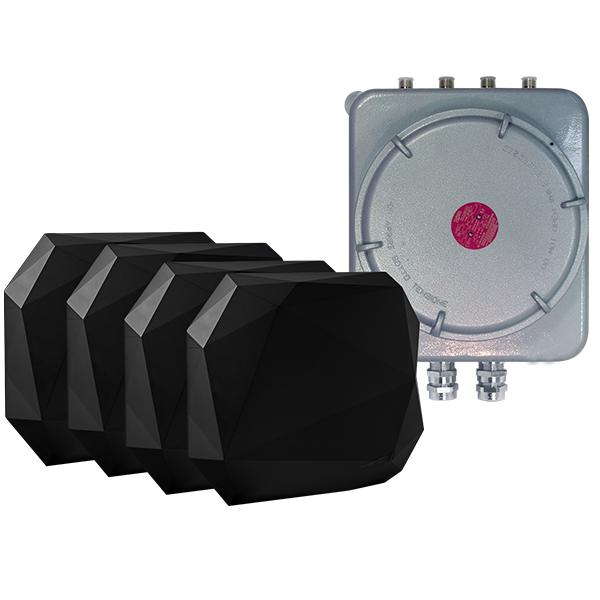

  • Picture of an ATX4 with its four external antennas by STid Industry

ATEX & IECEx certifications

logo of atex iec iecex



STid has developed a certified RFID reader range to meet the two key industry requirements - security and reliability.

Our solutions are compliant with all the international standards of the market: ATEX (EN60079) & IECEx certifications; European Directives (99/92/EC and 94/9/EC). They are well suited for all your people identification applications in explosive and isolated environments.

The EX II 2 GD IP66 explosion-proof casing is well-suited to the chemical, petrochemical and nuclear industries, among others.

Marking

EC type Examination certificate: INERIS 13 ATEX 0021X
Approved type: GUB Ex II 2 GD
(G: gas / D: Dust)
II 2G Ex d IIB T6 Gb
II 2D Ex tb IIIC T85°C Db IP66

Solutions designed for industries with ATEX zones



petrochimical us plateformes petrolieres us Distilleries

Petrolier US Centrales nucleaire US Mines

Applications in environments with explosive atmosphere

Our solutions are especially well suited for all your identification and asset tracking applications requiring explosion proof equipment: chemical and petrochemical industries, in refineries or in nuclear power plants, mining…

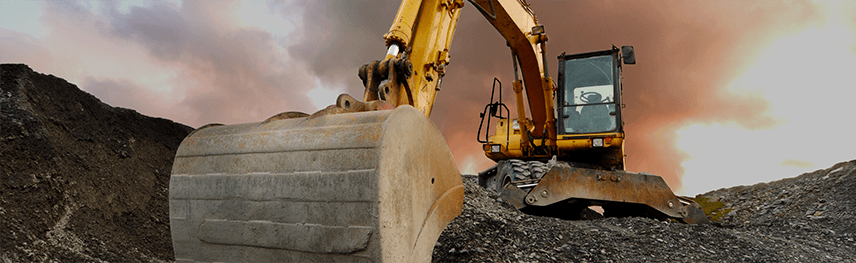

  • Vehicle and truck identification

    Application in vehicle and truck identification of the ATX4 by STid Industry

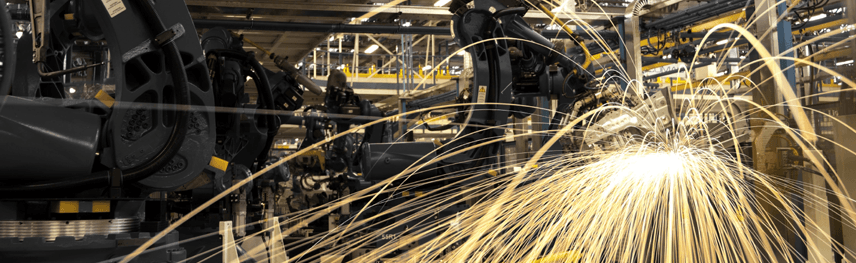

  • Automate plant processes

    Application automate plant process of the ATX4 by STid Industry

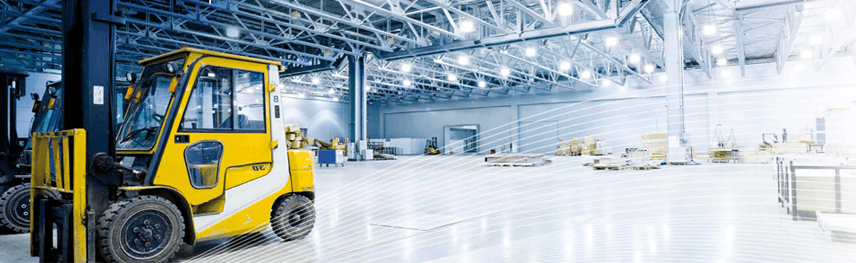

  • Track pallets, rolls, containers, returnable items, etc.

    Application in returnable items tracking of the ATX4 by STid Industry

Performance O

High reading performance

Thanks to 3D ID System technology, SPECTRE ATX4 offers the best performance with long-distance identification capacity of up to 6 m / 19.7 ft*.

Its high performance makes SPECTER ATX4 the most suitable industrial RFID reader for high volume moving applications in ATEX zones.

* ATTENTION, information on reading speeds, performances, and distances: measured at the center of the antenna, depend on the type of tag, the type of support and its positioning, the number and configuration of the antennas, the temperature, and the supply voltage. Installation conditions and the environment may affect reading speeds, performance, and distances.


Multi technos O

Modular and scalable

With its 4 remote and independent antennas, SPECTRE ATX4 adapts to all your requirements, for your current and future projects.

The modularity of SPECTRE ATX4 makes it possible to anticipate changes in application cases and limits the costs associated with change.

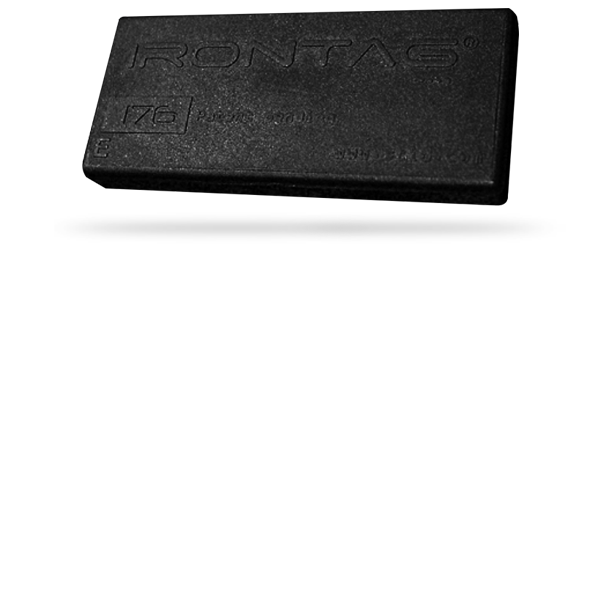

The SPECTRE ATX4 reader supports all types of passive UHF tags (without battery) guaranteeing:

  • a virtually unlimited lifespan,
  • controlled investments with a cost 3 to 5 times lower than other active technologies,
  • the elimination of maintenance costs.

Ease of integration and installation



SPECTRE ATX4 is interoperable with existing industrial infrastructures.

Power over Ethernet (PoE)* allows the reader to be connected directly via Ethernet to the business software or to the middleware without any additional connection or power supply.

The reader offers 4 inputs (for detection cells, sensors, etc.) and 4 outputs (for light columns, rotating beacons, remote industrial buzzers, etc.). GPIOs simplify the on-site integration and configuration of customer applications (gantry, conveyor, shuttle, tunnel, etc.).

The wall and mast mounting system of the remote antennas in VESA 75x75 standard allows numerous installation configurations.

The different lengths of ultra-flexible coaxial cables (1.5, 3, 9 and 12 m / 4.9, 9.8, 29.5 and 39.4 ft) and their possibility of serial connection, offer great flexibility of installation on site.

*Requires a PoE switch or injector.

exergueT

Data sheet

  • Frequency
    Frequency: UHF
  • Standards
    Standards: EPC1 Gen 2 / ISO18000-63 - Untraceable - Block Permalock - ATA SPEC 2000 compatibility
  • Functions
    Functions: Managed (read/write) via SSCP®
  • Interfaces
    Interfaces: RS232 / RS485 / USB WEDGE / TCP-IP POE
  • Reading distances
    Reading distances: 6 m / 19.7 ft
  • Power supply
    Power supply: Typ. 24 VDC (12 to 30 VDC) or PoE / Consumption: 0.6 A / 24 VDC
  • Material
    Material: Aluminum alloy and stainless steel, gray epoxy RAL 9006
  • Color
    Color: Grey
  • Dimensions (h x w x d)
    Dimensions (h x w x d): reader: 310 x 270 x 175 mm / 12.2’’ x 10.63’’ x 6.89’’ / Antenna: 349 x 279 x 44 mm / 13.7’’ x 11’’ x 1.7’’
  • Operating temperatures
    Operating temperatures: -20°C to +50°C / -4°F to +122°F
  • Protection
    Protection: Reinforced structure with high resistance to shock and vibration (IK10 certified, IEC 60068-2-6 and MIL - STD-810G standards)
  • Resistance
    Resistance: IP66 level - Weather, water and dust resistant (CEI NF EN 61086 certification) / Humidity: 0 - 95%

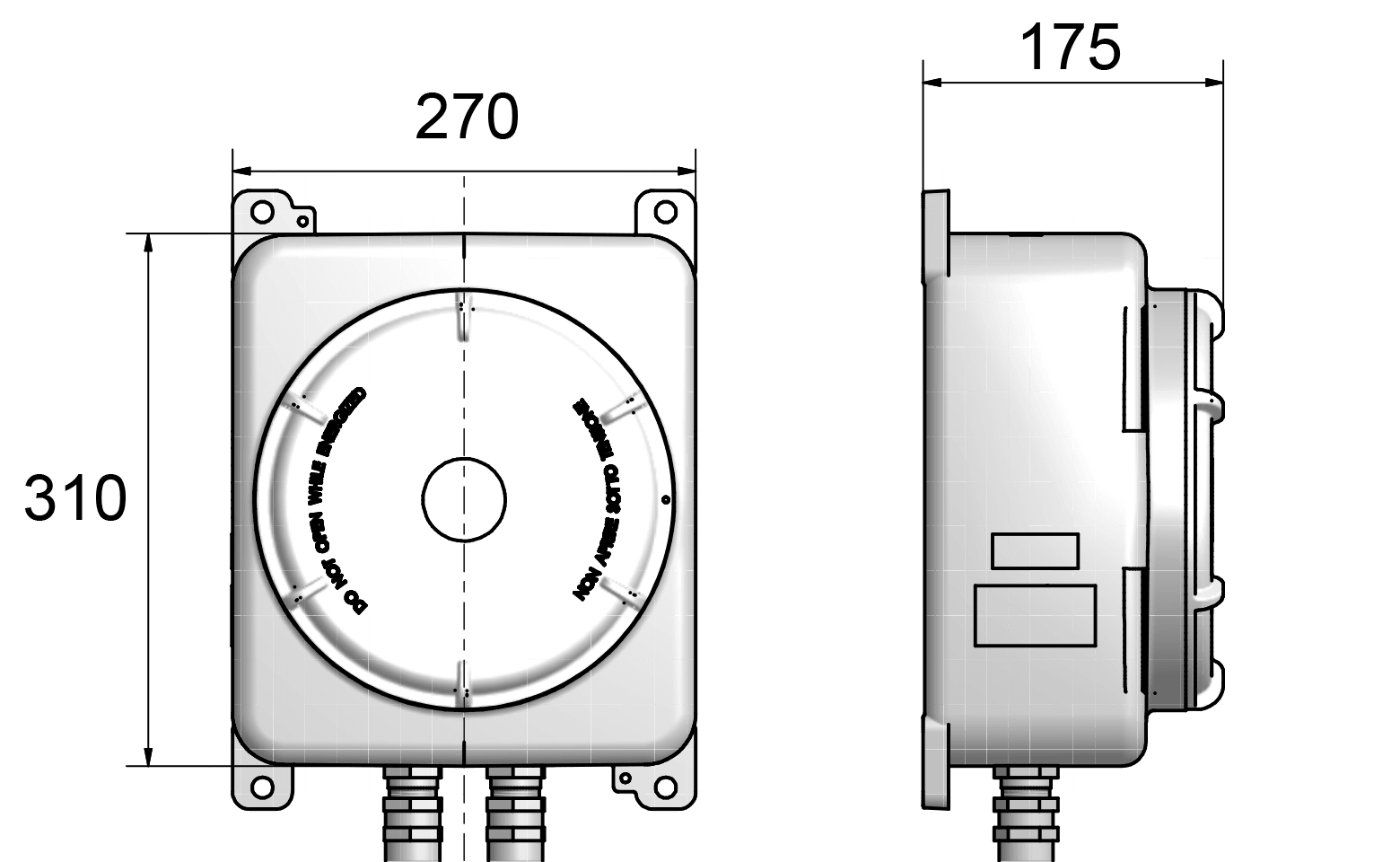

ATX3 cotes

     CE FCC Logos grey 250px

Part numbers

Reader only:



  Reader UHF SPECTRE ATX4 – R/W SSCP - TCP-IP PoE - 865-868 MHz:

ATX4W44AU048AA3

  Reader UHF SPECTRE ATX4 – R/W SSCP - TCP-IP PoE - 902-928 MHz:

ATX4W54AU048AA3



Antennas:



  UHF SPECTRE antenna + buzzer - 865-868 MHz:

ANT-SPECTRE-E

  UHF SPECTRE antenna + buzzer - 902-928 MHz:

ANT-SPECTRE-F
